Security doors

Security is precious – at the office, at home, everywhere.

A feeling of security plays a key role in surprisingly numerous aspects of our home and working lives. Security from uninvited guests, noise and, above all, dangers such as fire and smoke. Doors made by Novoferm give you exactly the security you want. And not only that: They combine individually configured security factors with an equally individual appearance.

Your advantages at a glance!

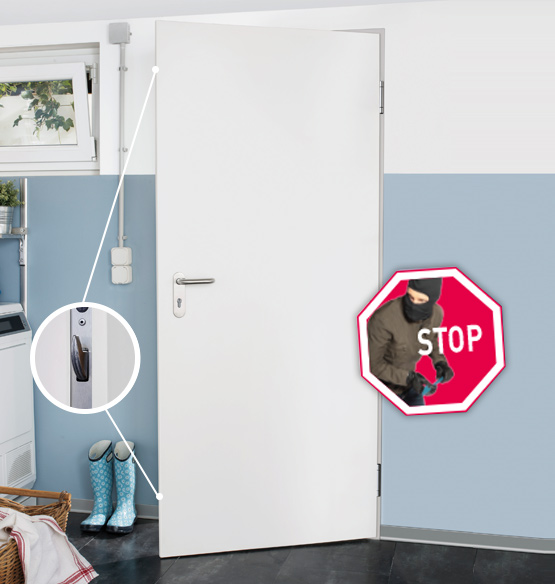

Sturdy steel hinges with hinge locks (many doors are standard equipped with 3-D hinges)
Additional steel securing pins engage with the frame and make it impossible to lever the door open

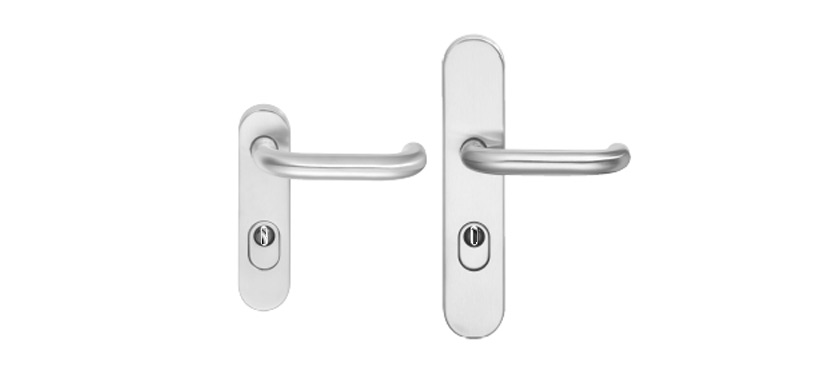

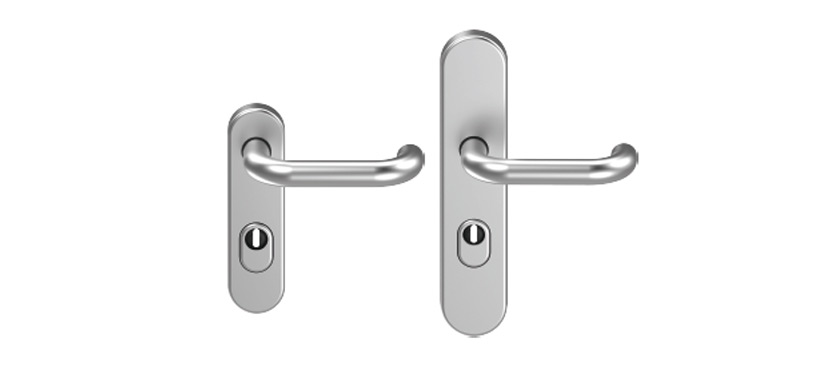

Aluminium security hardware as per DIN 18257
High-quality locking systems with multiple locks
Security profile cylinder with core-draw protection as per DIN 18252, standard anti-drill and anti-pull protected, with three keys
Key with safety card to prevent unauthorized duplication
All doors with homely thick rebate
Optional combinations with fire and smoke protection or acoustic installation, depending on the type of door
Numerous features possible
Depending on the door model, with new design finish or finished in a Super Color, Super Dekor or RAL of your choice

Why opt for security doors made by Novoferm?

Novoferm security doors are suited for the widest range of applications, primarily in construction projects – from intra-company safety standards, in IT areas for example, to the rough and tumble daily routine that doors have to withstand in offices, workshops or warehouses. Possible applications that can include combined fire or smoke protection or soundproofing, are doors leading out of the cellar or out of the side of a building, e.g. from utility room or garage to garden, from production to office where key documents are stored, doors leading to medication or prescription block storage in surgeries and clinics, access to server and IT rooms, front doors in apartment blocks, back doors, e.g. jewellery stores or warehouses used for retail, wholesale or manufacturing purposes.

All Novoferm security doors comply with the performance characteristics required by the European test standard for security doors, EN 1627 – as confirmed by a recognized impartial testing agency. Our security doors offer tested security ranging from resistance class RC2 to RC4, depending on the type.

Our security doors are particularly functional. They are capable of resisting unwanted guests, fire, smoke or noise. Depending on the type of multi-functional door, security can be combined with soundproofing, smoke protection or fire resistance.

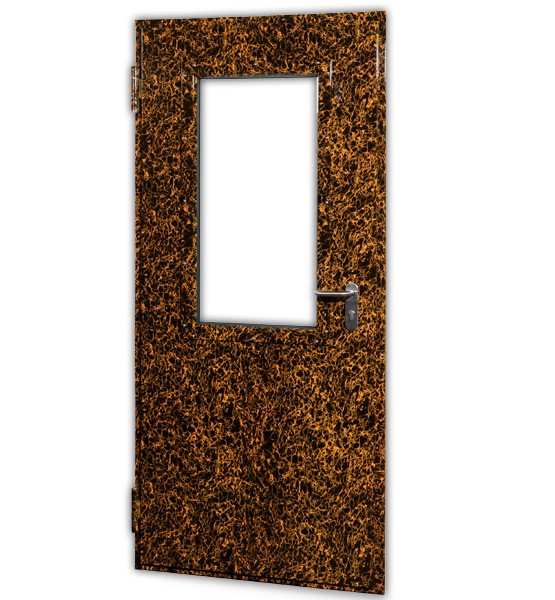

Novoferm offers a wide choice of sophisticated design and colour variants ranging from classically elegant to homely modern, right up to functionally straightforward. Not least, the exclusive design finishes make sure our steel doors are beautifully secure, attractive, and presentable everywhere, thanks to Novoferm's expertise.

Numerous options to encourage creative door design can be found, for example, in our range of panel glazing, top panels and fanlights – all offering the same level of security performance, of course. Equally, the choice of accessories and special equipment is huge.

Overview of resistance classes

Classes in endurance testing

Resistance class RC2
Resists for 3 minutes*
An occasional burglar tries to break in with simple tools: He positions a screwdriver, takes a pair of pliers, forces wedges into the part, or takes a small hand saw to visible hinges.

A 2 tool kit
When testing, a rubber hammer may be used to drive in the wedges or the screwdriver to simulate appropriate manual attempts. Otherwise, the following tools are available: 1 screwdriver, 1 pipe wrench, 1 steel pipe extension, various plastic/wood wedges and various saws (wood, pad, hacksaw).

Resistance class RC3
Resists for 5 minutes*
The burglar is better equipped, and uses a second screwdriver, various hand tools (small hammer, mechanical drill, etc.) and a crowbar to simplify access by increasing the leverage effect. The drill is used to work on any locking mechanisms.

A 3 tool kit
The fitter's hammer may not directly hit the door – nor does this test procedure permit the use of a crowbar against the test specimen. Both tools are intended for pin punching or levering out or puncturing the door. The following can be used in addition to the tools in the A2 kit: one each screwdriver, crowbar, saw, fitter's hammer, hand drill, set of drill bits and 1 set of pin punches.

Resistance class RC4
Resists for 10 minutes*
An experienced burglar brings professional equipment along: He grabs a saw, uses different impact tools, such as axes, chisels, or a cordless drill. The surface area he can attack is much bigger thanks to the wider range of applications of his tools. He is very willing to take risks in the hope of making a reasonable haul; this intruder is determined to get in.

A 4 tool kit
The wider range of tool options makes the attack more dangerous. The tools used in this class, above and beyond tool kit A 3: 1 each piston sledge, cold chisel, wood chisel, axe, bolt cutter, cordless drill, set of drills and 2 sheet metal cutters.

* The time indicated is purely the time taken to work on the door. The clock starts the instant the first tool is applied. The higher the resistance class, a) the longer the door must resist, and b) the heavier the permitted tools become.

Class: It's all about resistance classes (RC).

Novoferm keeps you secure, even though the former German resistance classes (WK)
were replaced in 2011 with European standards governing burglar resistance, which distinguish between classes RC1 – RC6. Classification is based on a procedure by which a fictitious burglar examines the door plans for possible weak points; the clock starts ticking when he starts trying to break in. The higher the RC, the heavier the tool that can be used.

Since the boundaries separating the classes have become stricter, a former WK classification cannot simply be translated to RC.

Former WK4 and WK5 are the only classes for which testing to the predecessor standard (DIN V ENV 1627) can be used for classification as RC4 and RC5 – supplementary tests are mandatory for all other transitions.

Special regulations apply for escape doors.

Correlation of former WK as per DIN V ENV 1627 to new EN 1627

Resistance class as per EN 1627	Resistance class as per DIN V ENV 1627	Criminal profile, criminal behaviour
RC1	WK1	Basic protection against attempted intrusion using physical force, such as kicking the door, flying kicks, or pulling it off its hinges
RC2	WK2	Occasional burglar with simple tools
RC3	WK3	Burglar attempts to break in using a second screwdriver and crowbar
RC4	WK4	Experienced burglar with additional cutting and impact tools (axe, chisel, hammer, cordless drill, etc.)
RC5	WK5	Experienced burglar with additional power tools (drill, jigsaw, angle grinder, etc.)
RC6	WK6	Experienced burglar with additional high-performance power tools (drill, jigsaw, angle grinder, etc.)

Choose a door to suit your security needs!

Programme overview

						RC2	RC3	RC4
Door name	Thick rebate	T 30	T 90	RS	Acoustic insulation	Burglar resistant	Burglar resistant	Burglar resistant	Thermal insulation	Also suitable for outdoor use	Opening direction EN 14351-1
E-S 6 1 leaf door	•				•	•			•	•	•
E-S-1 1 leaf door	•			•	•	•			•	•	•
E-S 9 1 leaf door	•	•¹)		•	•		•		•	•	•
E-S 63-1 1 leaf door	•				•		•		•	•	•
E-S-2 2 leaf door	•			•	•	•			•	•	•
E-S 63-2 2 leaf door	•				•		•		•	•	•
E-S 11 1 leaf door	•	•¹)		•	•				•	•	•

¹) For indoor use only ²) As special door type T30-1 N2/50

RC2 Exclusive security doors

Explanation of resistance class RC2

Security doors with resistance class RC2

Below you can see our resistance class RC2 security doors that have been tested to EN 1627.

NovoSecur® E-S 6 Exclusive security doors

The slimline model

Characteristics and surface finishes. Single leaf full panel door with 6-fold safeguards for indoor and outdoor use. 40 mm door panel, rebate on 3 sides, with homely thick rebate. Filled with insulating mineral wool, full-surface bonding. Sheet metal 1.0 mm thick (0.88 mm with Super Dekor).

Your advantages at a glance!

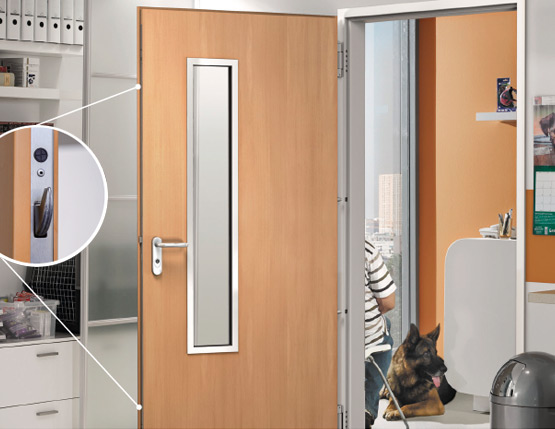

Optimum protection with 6 point lock
RC2 safety tested to EN 1627
2 securing pins per leaf
Security PC mortice lock with drawback latch
Security profile cylinder (drill-protected)
Thick rebate adds a homely touch
Leaf thickness approx. 40 mm
…

NovoSecur® E-S 6: the details

Door panel standard galvanized and primed (powder coated, RAL 9016).

Optional Super Color:
up to BR 1250 x 2250 mm, textured powder coating primer in steel blue, ruby red, fir green, light grey, window grey, anthracite grey, nut brown, sepia brown, platinum white, carmine red, olive green and yellow grey.

Optional Super Dekor:
Wood decors for inside use in maple, pear, cherry, walnut, natural beech, light oak or white ash.
Optionally available in RAL of your choice.

Frame galvanized and EC-primed, similar to RAL 7035, optionally available in RAL of your choice.

Versions
Burglar resistant as per EN 1627 RC2. Also available with standard or customized glazing and/or top panel/fanlight. Soundproof from 29 dB to 42 dB with special acoustic insulation, tested to EN ISO 140-3, assessed as per EN ISO 717-1.

Lock
Standard: Multiple lock with PC mortice lock with drawback latch and two swing bolt locks.
Optional: Multiple lock with PC mortice lock with drawback latch and two swing bolt locks and two additional bolts.

Hardware
2 hinge plates, three-dimensionally adjustable (standard 3-D hinge), with hinge lock, aluminium knob-lever set as per DIN 18257 ES 1 ZA with 72 mm short plate and SI profile cylinder as per DIN 18252 BS (35 + 26 mm), safety card and three keys.

Frames
Standard corner frame with sealing profile, optional counter, wrap-around or block frame for butted wall connection, replacement frame.

Sills
StandardStandard with lower contact threshold, optional lowerable floor seal (RS1) or rebate sill (BE2).

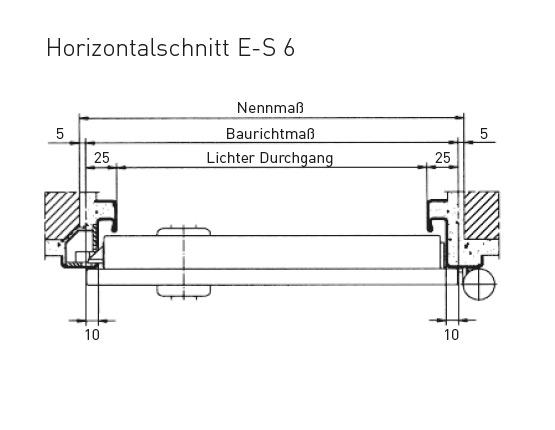

E-S 6 horizontal section

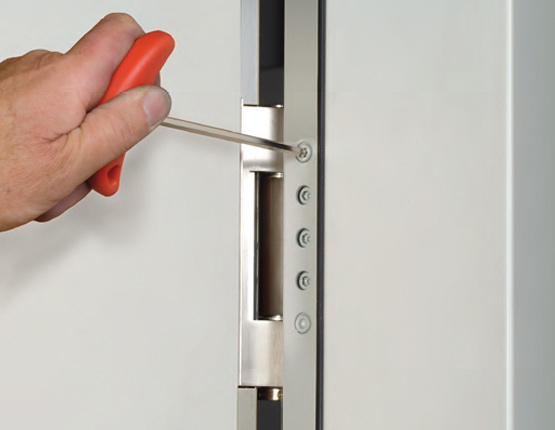

Standard 3-D hinge – complete with simple and fast adjustment!

Technical data

Model	E-S 6
Resistance class	RC2

Approved dimensions
Coordinating width, min. – max.	625 - 1250
Coordinating height, min. – max.	1750 - 2500
with top panel, max. height	3500
Top panel height, min. – max.	250 - 1500

Security features
Number of securing pins per leaf	2
Security PC mortice lock with drawback latch	•
Multiple locks	• (standard)
Multiple locks and 2 additional bolts	• (optional)
Drill-protected security profile cylinder	•

Door panel
Thickness, approx.	40
Sheet metal thickness	1.0 (0.88 mm with Super Dekor)
Thick rebate (3-sided)	•
DIN opening	left or right
Heat transfer coefficient as per EN ISO 10 077-1	Ud = 1.7 W/m²K

Walls
Masonry (brick compression strength ≥ 12)	≥ 115
Concrete (strength class ≥ 12/15)	≥ 100
Foam mortar block / Precision blocks (strength class 4 / bonded)	≥ 150
Reinforced foam mortar wall boards (strength class 4 / bonded)	≥ 150
F90 burglar resistant installation walls made of gypsum plasterboard (as per DIN 4102, Part 4)	≥ 100
Steel construction	•

Option
Optional top panel (for indoor use only)	•
Optional fanlight (for indoor use only)	•
Optional acoustic insulation	Standard unit 29 - 34 dB * with special soundproofing (for indoor use only) up to 42 dB*

Test report no.	45-11/12

All sizes in mm BR = Coordinating size, RAM = Outer frame dimensions, LD = Clear passage dimensions * The stated sound insulation values are laboratory values for full panel doors only. The sound insulation that can be achieved on site is: laboratory value - 5 dB	• possible – not possible

NovoPorta Premio E-S-1 / E-S-2 Exclusive security doors

The classic models

Single and double full panel steel door units for indoor and outdoor use. 64 mm door panel, rebate on 3 sides, with homely thick rebate. 1 mm sheet thickness, 1.5 mm optionally available. Internal reinforcement for door closer on hinge side (on active leaf and inactive leaf on double door units).

Your advantages at a glance!

RC2 safety tested to EN 1627
2 securing pins per leaf
Security PC mortice lock with drawback latch
Inactive leaf lock with front end bolt (2 leaf)
Security profile cylinder (drill-protected)
Thick rebate adds a homely touch
Leaf thickness approx. 64 mm
more

NovoPorta Premio E-S-1 / E-S-2: the details

Door panel and frame standard galvanized and primed (powder coated, RAL 9016).
Optional: Door panel, frame and hinges with optional design finish.

Versions
Burglar resistant as per EN 1627 RC2. Filled with mineral wool for heat insulation. Optionally available with soundproofing 40 dB (1 leaf) or 39 dB (2 leaf) tested to EN ISO 140-3, assessed as per EN ISO 717-1 (laboratory values for full panel and RS1 sill).
Also available with smoke protection as per DIN 18095 with lowerable floor seal (RS1) or hump sill with acoustic threshold seal (RS2) and overhead door closer (double door units with two Dorma TS 89 F or Geze TS 4000 F overhead door closers, door coordinator, and customized upward and downward locking rebate retracting bolt).

Hardware
3-part hinge plates, standard equipped with ball bearings and hinge pin safeguards. Two hinges per leaf, standard primed white, similar to RAL 9016; optionally available in stainless steel, as adjustable 3-D hinges in steel or stainless steel. Spring hinge per leaf up to BR 1250 x 2250 mm. Two securing pins per leaf. Security PC mortice lock with drawback latch as per DIN 18251, class 4, fire resistant aluminium security knob-lever set as per DIN 18257 ES 1 ZA, short plate with cylinder distance 72 mm as well as drill-protected SI profile cylinder as per DIN 18252 class P2 BZ (50 + 40 mm), safety card and 3 keys. Additional features on double door units: Flush centre rebate with centre rebate seal. Inactive leaf with concealed upward and downward locking front end bolt.

Frames
Standard: Corner frame with three-sided sealing profile, 2.0 mm thick, frame facing width 50 mm, optionally available: wrap-around door frame, 2140B two-part wrap-around frame profile, counter and block frame for butted wall connection, or block frame for installation in front of the wall.

Sills
Standard A floor level, B1, B2, B3 optionally available with all-round frame, or C2 with bottom stop, or RS1 sealing sills with lowerable floor seal, RS1 double sill or hump sill with RS2 acoustic threshold seal.

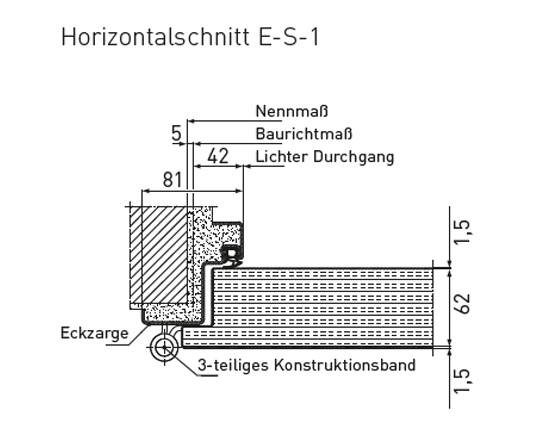

E-S-1 horizontal section

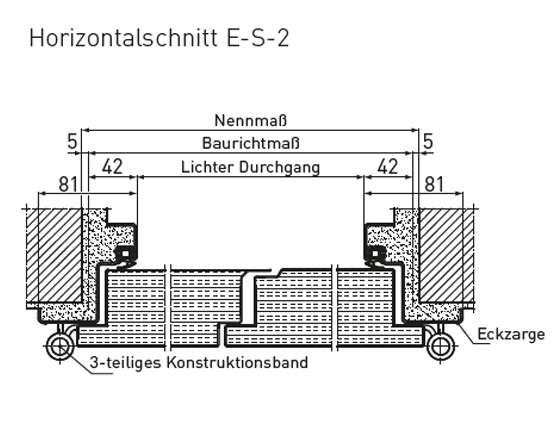

E-S-2 horizontal section

Technical data

Models	E-S-1	E-S-2
Resistance class	RC2	RC2

Approved dimensions
Coordinating width, min. – max.	625 - 1375	1375 - 2500
Coordinating height, min. – max.	1750 - 2500	1750 - 2500
With top panel / fanlight up to max. height	-	-

Security features
Number of securing pins per leaf	2	2
Security PC mortice lock with drawback latch	•	•
Inactive leaf lock with front end bolt
(locks upwards and downwards)	-	•
Drill-protected security profile cylinder	•	•

Door panel
Thickness, approx.	64	64
Sheet metal thickness (optional)	1(1.5)	1(1.5)
Thick rebate (3-sided)	•	•
DIN opening	left or right	left or right
Heat transfer coefficient as per EN ISO 10 077-1	Ud = 1.5 W/m²K	Ud = 1.5 W/m²K

Walls
Masonry (brick compression strength ≥ 12)	≥ 115	≥ 115
Concrete (strength class ≥ 12/15)	≥ 100	≥ 100
Foam mortar block / Precision blocks
(strength class 4 / bonded)	≥ 175	≥ 175
Reinforced foam mortar wall boards
(strength class 4 / bonded)	≥ 150	≥ 150
F60-A-/F90-A-burglar resistant installation walls made of steel partitions (as per DIN 4102, Part 4)	≥ 100	≥ 100
F60-B-/F90-B-burglar resistant installation walls made of timber partitions (as per DIN 4102, Part 4)	≥ 100	≥ 100
Steel construction	•	•

Option
Optional smoke protection	•	•
Optional soundproofing	23 - 44 dB*	22 - 43 dB*

Test report no.	261›3200-GS›S01	261›3200-GS›S01

All sizes in mm • possible - not possible BR = Coordinating size RAM = Outer frame dimensions LD = Clear passage dimensions
* The stated sound insulation values are laboratory values for full panel doors only.
The sound insulation that can be achieved on site is: laboratory value -5 dB

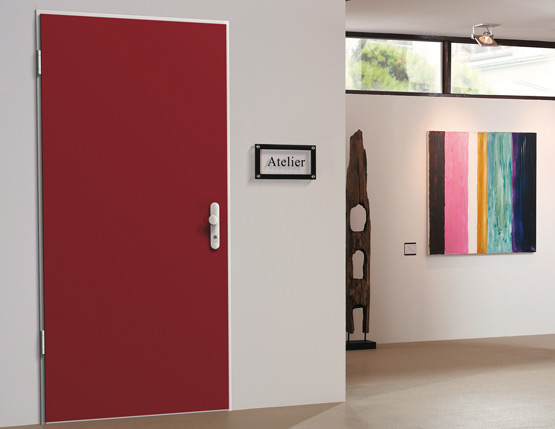

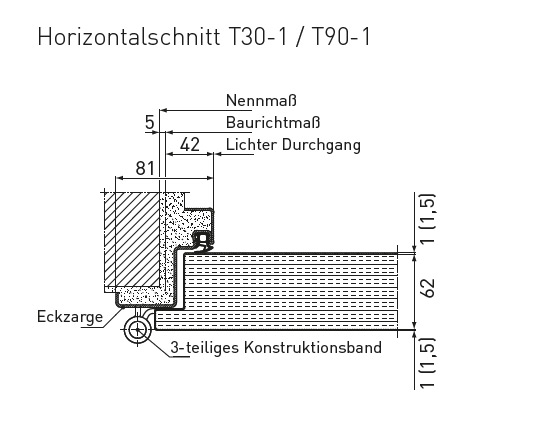

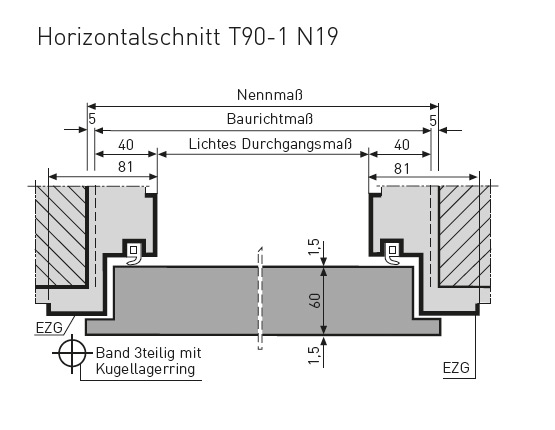

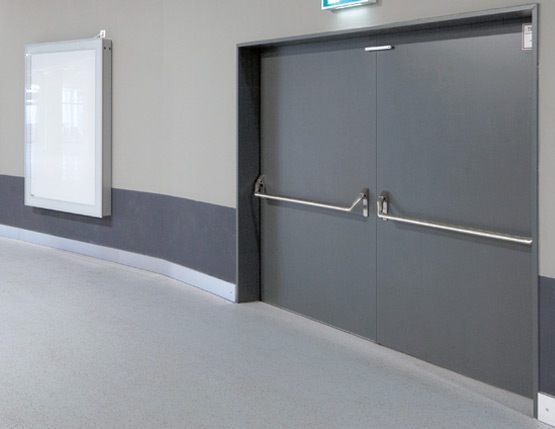

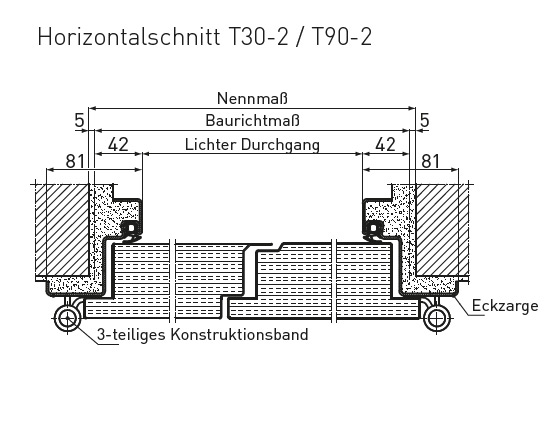

NovoPorta Premio T30-1 and T30-2 / T90-1 and T90-2 Exclusive security doors

The versatile models

Single and double full panel fire resistant steel door units for indoor use. 64 mm door panel, rebate on 3 sides, with homely thick rebate. 1 mm sheet thickness, 1.5 mm optionally available. 1 leaf T30 doors with additional internal reinforcement for door closer on hinge side. Fireproof strip on 3 sides, 2 leaf units with additional centre rebate on active leaf.

Your advantages at a glance!

RC2 safety tested to EN 1627
2 securing pins per leaf (3 per leaf on T90 sizes from 2126)
Security PC mortice lock with drawback latch
Inactive leaf lock (rebate retracting bolt) / (2 leaf)
Security profile cylinder (drill-protected)
Thick rebate adds a homely touch
Leaf thickness approx. 64 mm
more

NovoPorta Premio T30-1 and T30-2 / T90-1 and T90-2: the details

Door panel and frame standard galvanized and primed (powder coated, RAL 9016). Door panel, frame and hinges optionally available with design finish.

Versions
Burglar resistant as per EN 1627 RC2. With heat insulation and fire resistant/fireproof panel filling. Optionally available with soundproofing 40 dB (T30-1) or 39 dB (T30-2, T90-1, T90-2) tested to EN ISO 140-3, assessed as per EN ISO 717-1 (laboratory values for full panel and RS1 sill).
Also available with smoke protection as per DIN 18095 with lowerable floor seal (RS1) or hump sill with acoustic threshold seal (RS2 / T30 units only) and overhead door closer. T30–1 and T90–1 also available as a wall flap measuring 500 x 700 to 1000 x 1750 mm.

Hardware
3-part hinge plates, standard equipped with ball bearings and hinge pin safeguards. Two hinges per leaf, standard primed white, similar to RAL 9016; optionally available in stainless steel, as adjustable 3-D hinges in steel or stainless steel. T30-1 doors with hinge plate and spring hinge as per DIN 18272, some with overhead door closer, depending on size and weight. Two securing pins per door leaf (T90 units: three securing pins on heights of 2126 mm or more). Security PC mortice lock with drawback latch as per DIN 18251, class 4, fire resistant aluminium security knob-lever set as per DIN 18257 ES 1 ZA, short plate with cylinder distance 72 mm as well as drill-protected SI profile cylinder as per DIN 18252 class P2 BZ (50 + mm), safety card and 3 keys. Additional features on double door units: Flush centre rebate with centre rebate seal. Inactive leaf with concealed upward and downward locking rebate retracting bolt, as well as two Dorma TS 89 F or Geze TS 4000 F overhead door closers, and one door coordinator.

Frames
Standard: Corner frame with three-sided sealing profile, 2.0 mm thick, frame facing width 50 mm, optionally available: wrap-around door frame, 2140B two-part wrap-around frame profile, counter and block frame for butted wall connection; T30 units: block frame for installation in front of the wall, as well.

Sills
Standard A floor level, B1, B2, B3 optionally available with all-round frame, or C2 with bottom stop, or RS1 sealing sills with lowerable floor seal, RS1 double sill or hump sill with RS2 acoustic threshold seal (RS2 sill for T30 units only).

Technical data

Models	T30-1	T90-1	T30-2	T90-2
Resistance class	RC2	RC2	RC2	RC2

Approved dimensions
Coordinating door width, min. – max.	625 - 1375	625 - 1375	1375 - 2500	1375 - 2500
Coordinating door height, min. – max.	1750 - 2500	1750 - 2500	1750 - 2500	1750 - 2500
Coordinating flap width, min. – max.	500 - 1000	500 - 1000	-	-
Coordinating flap height, min. – max.	700 - 1750	700 - 1750	-	-

Security features
Number of securing pins per leaf	2 (T90 from 2126 = 3)	2 (T90 from 2126 = 3)	2 (T90 from 2126 = 3)	2 (T90 from 2126 = 3)
Security PC mortice lock with drawback latch	•	•	•	•
Inactive leaf lock (rebate retracting bolt) (locks upwards and downwards)	-	-	•	•
Drill-protected security profile cylinder	•	•	•	•

Door panel
Thickness, approx.	64	64	64	64
Sheet metal thickness	1(1.5)	1(1.5)	1(1.5)	1(1.5)
Thick rebate (3-sided)	•	•	•	•
DIN opening	left or right	left or right	left or right	left or right
Heat transfer coefficient as per EN ISO 10 077-1	Ud = 1.5 W/m²K (T90 still being tested)	Ud = 1.5 W/m²K (T90 still being tested)

Walls
Masonry (brick compression strength ≥ 12)	≥ 115	≥ 175	≥ 115	≥ 175
Concrete (strength class ≥ 12/15)	≥ 100	≥ 140	≥ 100	≥ 140
Foam mortar block / Precision blocks
(strength class 4 / bonded)	≥ 175	≥ 175	≥ 175	≥ 175
Reinforced foam mortar wall boards
(strength class 4 / bonded)	≥ 150	≥ 175	≥ 150	≥ 175

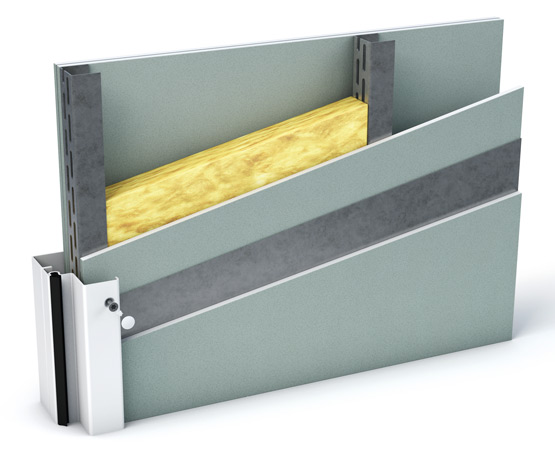

F90 burglar resistant installation walls
made of steel partitions
(as per DIN 4102, Part 4)	≥ 100	≥ 100	≥ 100	≥ 100
F60-B-/F90-B-burglar resistant installation walls
made of timber partitions
(as per DIN 4102, Part 4)	≥ 130	-	≥ 130	-
Steel construction	-	-	-	-

Option
Optional top panel (max. height: 1000)	-	-	-	-
Optional fanlight (max. height: 1000)	-	-	-	-
Optional smoke protection	•	•	•	•
Optional soundproofing	23 - 44 dB*	23 - 45 dB*	22 - 43 dB*	22 - 43 dB*
Optional outdoor use	-	-	-	-
Optional glazing	-	-	-	-

Fire resistance approval	Z-6.20.2205	Z-6.20.2221	Z-6.20.2205	Z-6.20.2221
Test report no.	2613200-GSS01	2613200-GSS01	2613200-GSS01	2613200-GSS01

All sizes in mm BR = Coordinating size, RAM = Outer frame dimensions, LD = Clear passage dimensions * The stated sound-insulation values are laboratory values for full panel doors only. The sound insulation that can be achieved on site is: laboratory value -5 dB
• possible – not possible

T90-2 N39 Exclusive security doors

The resistant models

Single and double full panel door units with overhead door closer for indoor use. Door panel with rebate on 3 sides, homely thick rebate. Fireproof strips on 3 sides and in centre rebate of active leaf on double door units. Sheet thickness 1.5 mm.

Your advantages at a glance!

RC2 safety tested to EN 1627
3 securing pins per leaf
Security PC mortice lock with drawback latch (RC2)
Lock on inactive leaf (rebate retracting bolt)
Security profile cylinder (drill-protected)
Thick rebate adds a homely touch
Leaf thickness approx. 68 mm
more

T90-2 N39: the details

Door panel and frame standard galvanized and primed (powder coated, RAL 9016).

Versions
Burglar resistant as per EN 1627 RC2. Optional soundproofing 41 dB (1 leaf with double RS1 sill) or 32 dB (2 leaf). Optional smoke protection as per DIN 18095.

Sills
Standard floor level (A), sill optionally available with all-round frame (B1, B2, B3), or with bottom stop (C), or sealing sills with lowerable floor seal (RS1) or hump sill (RS2). 1 leaf also available with 2 x RS1.

Hardware
Up to BR 2500 x 2500, two 3-part hinges 160/16/5 per leaf, with ball bearing and hinge plug safeguard (3 hinges per leaf from BR 2500 x 2500). 2 Dorma TS 89 or Geze TS4000 door closers, 1 door coordinator. Fire resistant aluminium security knob-lever set as per DIN 18257 ES 1 with security door and cylinder cover, PC as per 18252 P2 BZ (45 + 40 mm) with safety card, security PC mortice lock with drawback latch as per DIN 18250, as well as one upward and downward locking rebate retracting bolt.

Frames
Standard corner frame, 2.0 mm thick with EPDM seal on 3 sides, with wall plug anchors. Optionally available with counter, wrap-around or block frame for butted wall connection.

Technical data

Models	T90-2 N39
Resistance class	RC2

Approved dimensions
Coordinating door width, min. – max.	1375 - 3000
Coordinating door height, min. – max.	1750 - 3000
Coordinating flap width, min. – max.	-
Coordinating flap height, min. – max.	-

Security features
Number of securing pins per leaf	3
Security PC mortice lock with drawback latch (RC2)
Inactive leaf lock (rebate retracting bolt) (locks upwards and downwards)	•
Drill-protected security profile cylinder	•

Door panel
Thickness, approx.	68
Sheet metal thickness	1.5
Thick rebate (3-sided)	•
DIN opening	left or right
Heat transfer coefficient as per EN ISO 10 077-1	not tested

Walls
Masonry (brick compression strength ≥ 12)	≥ 240
Concrete (strength class ≥ 12/15)	≥ 140
Foam mortar block / Precision blocks
(strength class 4 / bonded)	≥ 240
Reinforced foam mortar wall boards
(strength class 4 / bonded)	≥ 200
F90 burglar resistant installation walls
made of gypsum plasterboard
(as per DIN 4102, Part 4)	-
Steel construction	-

Option
Optional top panel	-
Optional fanlight	-
Optional smoke protection	•
Optional soundproofing	32 - 37 dB*
Optional glazing	-

Fire resistance approval	Z-6.20.1987
Test report no.	269277-GS S05

All sizes in mm BR = Coordinating size, RAM = Outer frame dimensions, LD = Clear passage dimensions * The stated sound-insulation values are laboratory values for full panel doors only.
The sound insulation that can be achieved on site is: laboratory value -5 dB

• possible – not possible

RC3 Exclusive security doors

Explanation of resistance class RC3

Security doors with resistance class RC3

Below you can see our resistance class RC3 security doors that have been tested to EN 1627.

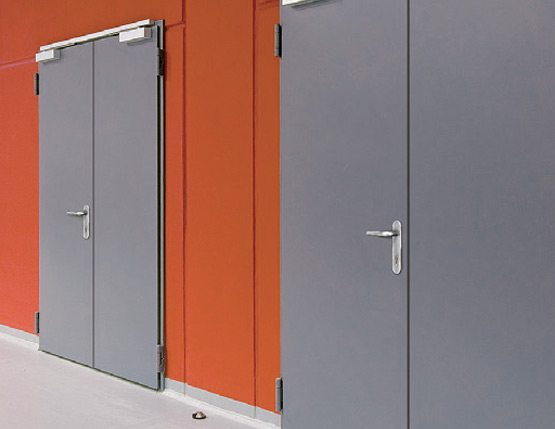

E-S 63-1 / E-S 63-2 Exclusive security doors

The solid models

Your advantages at a glance!

RC3 safety tested to EN 1627
3 securing pins per leaf
Security PC mortice lock with drawback latch, with special bolt.
Inactive leaf lock (rebate retracting bolt) / (2 leaf)
Security profile cylinder (drill-protected)
Thick rebate adds a homely touch
Leaf thickness approx. 63 mm
more

E-S 63-1 / E-S 63-2: the details

Single and double full panel door units for indoor and outdoor use. 62 mm door panel, rebate on 3 sides, with homely thick rebate. Sheet thickness 1.5 mm. Internal reinforcement for door closer on hinge side (on active leaf and inactive leaf on double door units).
Door panel and frame standard galvanized and primed (powder coated, RAL 9016).
E-S 63-1: Door panel, frame and hinges optionally available with design finish.

Versions
Burglar resistant as per EN 1627 RC3. Filled with mineral wool for heat insulation. Optional soundproofing 35 dB (1 leaf) or 32 dB (2 leaf) tested to EN ISO 140-3, assessed as per EN ISO 717-1.

E-S 63-1 also available as a wall flap measuring 500 x 500 to 1250 x 1750 mm.

Hardware
Per leaf: two 3-part hinges KO 160/16/4 with ball bearing and hinge plug safeguards.
3 securing pins per leaf, security PC mortice lock with drawback latch as per DIN 18250, class 3, with special bolt. Fire resistant aluminium security knob-lever set as per DIN 18257 ES 2 ZA with long plate and SI profile cylinder as per DIN 18252 P2 BZ (45 + 40 mm), safety card and 3 keys.
Inactive leaf with (upward and downward locking) rebate retracting bolt. Standard centre rebate seal.

Frames
Corner frame, 2.0 mm thick with EPDM seal on 3 sides, with wall plug anchors. Wrap-around, block and counter frames available at additional charge (corner and wrap-around frames supplied flat-packed, with concealed screw fastening).

Sills
Standard floor level (A), sills optionally available with all-round frame (B1, B2, B3), or with bottom stop (C), or sealing sills with lowerable floor seal (RS1) or hump sill (RS2). 1 leaf also available with 2 x RS1.

Technical data

Models	E-S 63-1	E-S 63-2
Resistance class	RC3	RC3

Approved dimensions
Coordinating door width, min. – max.	625 - 1375	1375 - 2500
Coordinating door height, min. – max.	1750 - 2500	1750 - 2500
Coordinating flap width, min. – max.	500 - 1250	-
Coordinating flap height, min. – max.	500 - 1750	-

Security features
Number of securing pins per leaf	3	3
Security PC mortice lock with drawback latch with special bolt	•	•
Inactive leaf lock (rebate retracting bolt) (locks upwards and downwards)	-	•
Drill-protected security profile cylinder	•	•

Door panel
Thickness, approx.	63	63
Sheet metal thickness	1,5	1,5
Thick rebate (3-sided)	•	•
DIN opening	left or right	left or right
Heat transfer coefficient as per EN ISO 10 077-1	Ud = 1.7 W/m²K	Ud = 1.8 W/m²K

Walls
Masonry (brick compression strength ≥ 12)	≥ 115	≥ 115
Concrete (strength class ≥ 12/15)	≥ 100	≥ 100
Foam mortar block / Precision blocks (strength class 4 / bonded)	≥ 240	≥ 240
Reinforced foam mortar wall boards (strength class 4 / bonded)	≥ 240	≥ 240
F90 burglar resistant installation walls made of gypsum plasterboard (as per DIN 4102, Part 4)	-	-
Steel construction (steel profile walls min. 3 mm thick)	•	•

Option
Optional top panel	-	-
Optional fanlight	-	-
Optional smoke protection	-	-
Optional soundproofing	34 - 44 dB*	32 - 37 dB*
Optional glazing	-	-

Test report no.	269277-GS S06	269277-GS S05

All sizes in mm BR = Coordinating size, RAM = Outer frame dimensions, LD = Clear passage dimensions * The stated sound-insulation values are laboratory values for full panel doors only.
The sound insulation that can be achieved on site is: laboratory value -5 dB	● possible – not possible

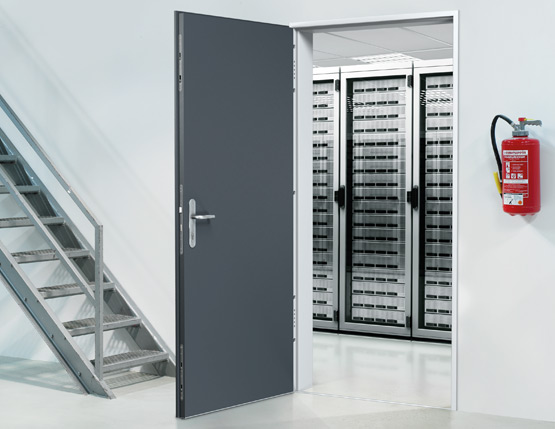

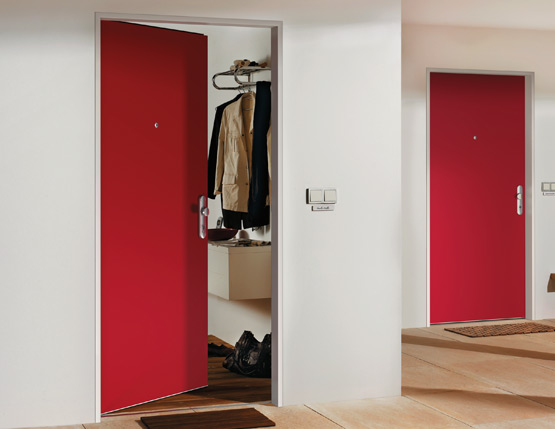

E-S 9 exclusive security doors

The comprehensive models

Single leaf full panel door with 9-fold safeguards for indoor and outdoor use. Fire resistance compliant T30 (standard equipped with overhead door closer) for indoor use only. Door panel with rebate on 3 sides, homely thick rebate, filled with insulating mineral wool. Five securing pins.

Your advantages at a glance!

Optimum protection with 9 point lock
RC3 safety tested to EN 1627
5 securing pins per leaf
Security PC mortice lock with drawback latch
Security profile cylinder (drill-protected)
Thick rebate adds a homely touch
Leaf thickness approx. 51 mm
more

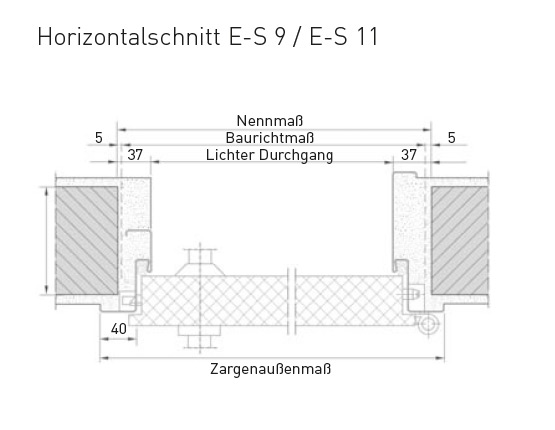

E-S 9: the details

Door panel standard galvanized and primed (powder coated, RAL 9016).
Optional Super Color:
Textured powder coating primer in steel blue, ruby red, fir green, light grey, window grey, anthracite grey, nut brown, sepia brown, platinum white, carmine red, olive green and yellow grey.

Optional Super Dekor:
up to BR 1250 x 2250 mm, wood decors for inside use in maple, pear, cherry, walnut, natural beech, light oak or white ash.

Optionally available in RAL of your choice.

Frame galvanized and EC-primed, similar to RAL 7035, optionally available in RAL of your choice.

Versions
Burglar resistance as per EN 1627
RC3 (9 point lock). Optionally T30 fire retardant. Soundproof (without glass) 41 dB as per EN ISO 717-1. Heat insulated (without glass) as per EN ISO 14351-1. T30 model also available with smoke protection as per DIN 18095 (with door closer up to BR 1250 x 2250 mm). MZ variant also available with standard glazing.

Frames
Corner and wrap-around frame, 2 mm thick, with seal on 3 sides and wall plug anchors, counter, block or replacement frames optionally available.

Sills
Standard equipped with contact threshold. Optionally available with BE2 rebate sill or RS1 lowerable floor seal.

Technical data

Models	E-S 9
Resistance class	RC3

Approved dimensions
Coordinating width, min. – max. MZ	625 - 1375
Coordinating height, min. – max. MZ	1750 - 2500
Coordinating width, min. – max. T30	625 - 1250
Coordinating height, min. – max. T30	1750 - 2250

Security features
Number of securing pins per leaf	5
Security PC mortice lock with drawback latch	•
With multiple locks/swing bolts (4-fold)	•
With multiple locks/swing bolts (6-fold)	–
Drill-protected security profile cylinder	•

Door panel
Thickness, approx.	51
Sheet metal thickness	1.0 (0.88 mm with Super Dekor)
Thick rebate (3-sided)	•
DIN opening	left or right
Heat transfer coefficient as per EN ISO 10 077-1	Ud = 1.8 W/m²K

Walls
Masonry (brick compression strength ≥ 12)	≥ 115
Concrete (strength class ≥ 12/15)	≥ 120
Foam mortar block / Precision blocks (strength class 4 / bonded)	≥ 240
Reinforced foam mortar wall boards (strength class 4 / bonded)	≥ 240
F90 burglar resistant installation walls made of gypsum plasterboard (as per DIN 4102, Part 4)	-
Steel construction (min. thickness of steel profile walls: 3mm)	• (not on T30)

Option
Optional smoke protection
(up to BR 1250 x 2250 mm)	•
Optional T30 fire resistance	•
Optional soundproofing	36 - 47 dB*
Optional panel surface finishes	Super Color/Dekor, RAL of choice

T30 fire resistance approval	Z-6.20-2199
Test report no.	45-64/15

All sizes in mm BR = Coordinating size, RAM = Outer frame dimensions, LD = Clear passage dimensions * The stated sound-insulation values are laboratory values for full panel doors only. The sound insulation that can be achieved on site is: laboratory value -5 dB	• möglich – nicht möglich

T30-1 N2/60 / T30-2 N22/60 Exclusive security doors

The sturdy models

Your advantages at a glance!

RC3 safety tested to EN 1627
3 securing pins per leaf
Security PC mortice lock with drawback latch, with special bolt.
Inactive leaf lock (rebate retracting bolt) / (2 leaf)
Security profile cylinder (drill-protected)
Thick rebate adds a homely touch
Leaf thickness approx. 62 mm
more

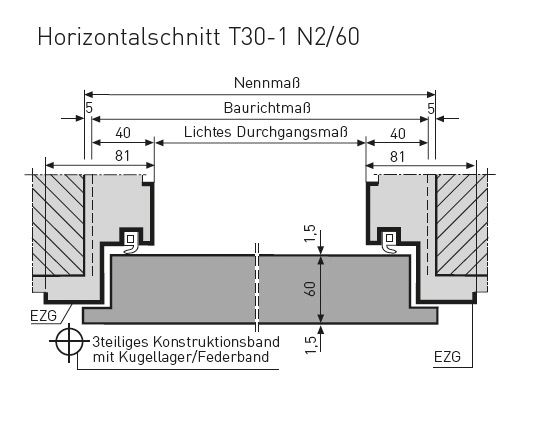

T30-1 N2/60 / T30-2 N22/60: the details

Door panel and frame standard galvanized and primed (powder coated, RAL 9016).

T30-1 N2/60: Door panel, frame and hinges optionally available with design finish.

Versions
Burglar resistant as per EN 1627 RC3. Also available with soundproofing 41 dB (1 leaf with double lowerable floor seal) or 32 dB (2 leaf) tested to EN ISO 140-3, assessed as per EN ISO 717-1. T30-1 N2/60 also available as a wall flap measuring 500 x 500 to 1250 x 1750 mm.

Hardware
Per leaf: two 3-part hinges KO 160/16/4 with ball bearing and hinge plug safeguards. Overhead door closer as per EN 1154 and door coordinator (N22/60). 3 securing pins per leaf, security PC mortice lock with drawback latch as per DIN 18250, class 3, with special bolt. Fire resistant aluminium security knob-lever set as per DIN 18257 ES 2 ZA with long plate and SI profile cylinder as per DIN 18252 P2 BZ (45 + 40 mm), safety card and 3 keys.

Inactive leaf with (upward and downward locking) rebate retracting bolt.

Frames
Standard corner frame, 2.0 mm thick with EPDM seal on 3 sides, with wall plug anchors. Wrap-around, block and counter frames available at additional charge (corner and wrap-around frames supplied flat-packed, with concealed screw fastening).

Sills
Standard floor level (A), sills optionally available with all-round frame (B1, B2, B3), or with bottom stop (C), or sealing sills with lowerable floor seal (RS1) or hump sill (RS2). 1 leaf also available with 2 x RS1.

Technical data

Models	T30-1 N2/60	T30-2 N22/60
Resistance class	RC3	RC3

Approved dimensions
Coordinating door width, min. – max.	625 - 1375	1375 - 2500
Coordinating door height, min. – max.	1750 - 2500	1750 - 2500
Coordinating flap width, min. – max.	500 - 1250	-
Coordinating flap height, min. – max.	500 - 1750	-

Security features
Number of securing pins per leaf	3	3
Security PC mortice lock with drawback latch, with special bolt	•	•
Inactive leaf lock (rebate retracting bolt) (locks upwards and downwards)	-	•
Drill-protected security profile cylinder	•	•

Door panel
Thickness, approx.	62	62
Sheet metal thickness	1,5	1,5
Thick rebate (3-sided)	•	•
DIN opening	left or right	left or right
Heat transfer coefficient as per EN ISO 10 077-1	Ud = 1.6 W/m²K	Ud = 1.8 W/m²K

Walls
Masonry (brick compression strength ≥ 12)	≥ 115	≥ 115
Concrete (strength class ≥ 12/15)	≥ 100	≥ 100
Foam mortar block / Precision blocks (strength class 4 / bonded)	≥ 240	≥ 240
Reinforced foam mortar wall boards (strength class 4 / bonded)	≥ 240	≥ 240
F90 burglar resistant installation walls made of gypsum plasterboard (as per DIN 4102, Part 4)	-	-
Steel construction	-	-

Option
Optional top panel	-	-
Optional fanlight	-	-
Optional smoke protection	•	•
Optional soundproofing	34 - 44 dB*	34 - 37 dB*
Optional glazing	-	-

Fire resistance approval	Z-6.20.2098	Z-6.20.2098
Test report no.	269277-GS S06	269277-GS S05

All sizes in mm BR = Coordinating size, RAM = Outer frame dimensions, LD = Clear passage dimensions * The stated sound-insulation values are laboratory values for full panel doors only. The sound insulation that can be achieved on site is: laboratory value -5 dB	• possible – not possible

T90-1 N19 / T90-2 N29 Exclusive security doors

The resistant models

Your advantages at a glance!

RC3 safety tested to EN 1627
3 securing pins per leaf
Security PC mortice lock with drawback latch, with special bolt (RC3)
Inactive leaf lock (rebate retracting bolt) / 2 leaf
Security profile cylinder (drill-protected)
Thick rebate adds a homely touch
Leaf thickness approx. 62 mm
…

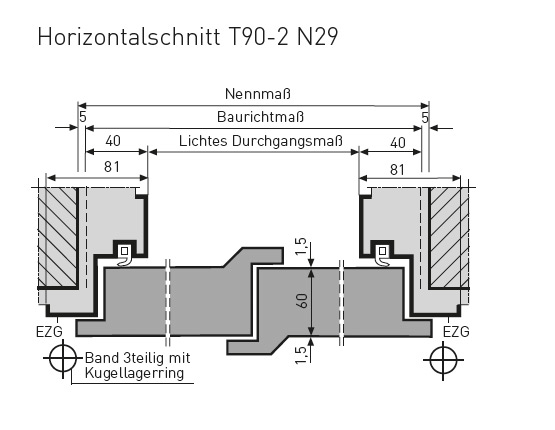

T90-1 N19 / T90-2 N29: the details

Door panel and frame standard galvanized and primed (powder coated, RAL 9016).

T90-1 N9 and T90-1 N19: Door panel, frame and hinges optionally available with design finish.

Versions
Burglar resistant as per EN 1627 RC3. Optional soundproofing 41 dB (1 leaf with double RS1 sill) or 32 dB (2 leaf). Optional smoke protection as per DIN 18095.
T90-1 also available as type N9 wall flap measuring 500 x 500 to 1250 x 1750 mm, some with overhead door closer, depending on size and weight.

Sills
Standard floor level (A), sill optionally available with all-round frame (B1, B2, B3), or with bottom stop (C), or sealing sills with lowerable floor seal (RS1) or hump sill (RS2). 1 leaf also available with 2 x RS1.

Hardware
Per leaf: two 3-part hinges KO 160/16/4 with ball bearing and hinge plug safeguards. 3 securing pins per leaf. Security PC mortice lock with drawback latch as per DIN 18250, with special bolt, fire resistant aluminium security knob-lever set as per DIN 18257 ES 2 with long plate, ZA, as well as SI profile cylinder as per DIN 18252 P2 BZ (45 + 40 mm), safety card and 3 keys. N19 with 1 Dorma TS 89 or Geze TS 4000 door closer. N29 with 2 of the aforementioned door closers and 1 door coordinator. 2 leaf: Inactive leaf with (upward and downward locking) rebate retracting bolt.

Frames
Standard corner frame, 2.0 mm thick with EPDM seal on 3 sides, with wall plug anchors. Optionally available with counter, wrap-around or block frame for butted wall connection.

Technical data

Models	T90-1 N19	T90-2 N29
Resistance class	RC3	RC3

Approved dimensions
Coordinating door width, min. – max.	625 - 1375	1375 - 2500
Coordinating door height, min. – max.	1750 - 2500	1750 - 2500
Coordinating flap width, min. – max.	500 - 1250	-
Coordinating flap height, min. – max. (N9 RC3)	500 - 1750	-

Security features
Number of securing pins per leaf	3	3
Security PC mortice lock with drawback latch (with special bolt)	•	•
Inactive leaf lock (rebate retracting bolt) (locks upwards and downwards)	-	•
Drill-protected security profile cylinder	•	•

Door panel
Thickness, approx.	62	62
Sheet metal thickness	1,5	1,5
Thick rebate (3-sided)	•	•
DIN opening	left or right	left or right
Heat transfer coefficient as per EN ISO 10 077-1	Ud = 1.6 W/m²K	Ud = 1.8 W/m²K

Walls
Masonry (brick compression strength ≥ 12)	≥ 175	≥ 175
Concrete (strength class ≥ 12/15)	≥ 140	≥ 140
Foam mortar block / Precision blocks (strength class 4 / bonded)	≥ 240	≥ 240
Reinforced foam mortar wall boards (strength class 4 / bonded)	≥ 240	≥ 240
F90 burglar resistant installation walls made of gypsum plasterboard (as per DIN 4102, Part 4)	-	-
Steel construction	-	-

Option
Optional top panel	-	-
Optional fanlight	-	-
Optional smoke protection	•	•
Optional soundproofing	35 - 44 dB*	32 - 37 dB*
Optional glazing	-	-

Fire resistance approval	Z-6.20.1919	Z-6.20.1919
Test report no.	269277-GS S06	269277-GS S05

All sizes in mm BR = Coordinating size, RAM = Outer frame dimensions, LD = Clear passage dimensions * The stated sound-insulation values are laboratory values for full panel doors only. The sound insulation that can be achieved on site is: laboratory value -5 dB	• possible – not possible

RC4 exclusive security doors

Explanation of resistance class RC4

Security doors with resistance class RC4

Below you can see our resistance class RC4 security doors that have been tested to EN 1627.

E-S 11 exclusive security doors

The comprehensive models

Single leaf full panel door with 11-fold safeguards for indoor and outdoor use. Fire resistance compliant T30 (standard equipped with overhead door closer) for indoor use only. Door panel with rebate on 3 sides, homely thick rebate, filled with insulating mineral wool. Five securing pins.

Your advantages at a glance!

Optimum protection with 11 point lock
RC4 safety tested to EN 1627
5 securing pins per leaf
Security PC mortice lock with drawback latch
Security profile cylinder (drill-protected)
Thick rebate adds a homely touch
Leaf thickness approx. 51 mm
more

E-S 11: the details

Versions
Burglar resistant as per EN 1627 RC4 (11-fold safeguards). Optionally T30 fire retardant. Available with soundproofing, heat insulation and smoke protection as described under E-S 9.

Hardware
2 hinge plates, three-dimensionally adjustable, with hinge lock. Standard lower acoustic threshold seal, aluminium security knob-lever set as per DIN 18257 ES 2 ZA (E-S 11: ES 3 ZA), long plate with cylinder distance 92 mm, drill-protected SI profile cylinder as per DIN 18252 BS (40 + 35 mm), safety card and 3 keys.

PC mortice lock with drawback latch (security geared lock, connected to two each additional upper and lower swing bolt locks) with 6 point lock as per DIN 18251 class 3.

Frames
Corner and wrap-around frame, 2 mm thick, with seal on 3 sides and wall plug anchors. Counter frame optionally available.

Sills
Standard equipped with contact threshold. Optionally available with BE2 rebate sill or RS1 lowerable floor seal.

Technical data

Models	E-S 11
Resistance class	RC4

Approved dimensions
Coordinating width, min. – max. MZ	625 - 1250
Coordinating height, min. – max. MZ	1875 - 2350
Coordinating width, min. – max. T30	625 - 1250
Coordinating height, min. – max. T30	1875 - 2250

Security features
Number of securing pins per leaf	5
Security PC mortice lock with drawback latch	•
With multiple locks/swing bolts (4-fold)	–
With multiple locks/swing bolts (6-fold)	•
Drill-protected security profile cylinder	•

Door panel
Thickness, approx.	51
Sheet metal thickness	1.0
Thick rebate (3-sided)	•
DIN opening	left or right
Heat transfer coefficient as per EN ISO 10 077-1	Ud = 1.8 W/m²K

Walls
Masonry (brick compression strength ≥ 12)	≥ 240
Concrete (strength class ≥ 12/15)	≥ 140
Foam mortar block / Precision blocks
(strength class 4 / bonded)	–
Reinforced foam mortar wall boards
(strength class 4 / bonded)	-
F90 burglar resistant installation walls made of gypsum plasterboard (as per DIN 4102, Part 4)	-
Steel construction (steel profile walls min. 3mm thick)	–

Option
Optional smoke protection (up to BR 1250 x 2250 mm)	•
Optional T30 fire resistance	•
Optional soundproofing	36 - 47 dB*
Optional panel surface finishes	Super Color RAL of choice

T30 fire resistance approval	Z-6.20-2199
Test report no.	EH-13-09-06-01

All sizes in mm BR = Coordinating size, RAM = Outer frame dimensions, LD = Clear passage dimensions * The stated sound-insulation values are laboratory values for full panel doors only. The sound insulation that can be achieved on site is: laboratory value - 5 dB	• possible – not possible

Hardware and accessories!

Designs

It all hinges on "decorative security".

Feel free to choose, not just security but also a wide range of decorative elements. And what is fascinating about them is that our brand new design finishes featuring an enormous choice of decors can even incorporate the hinges and frames if you want. And the outcome? Is a surprisingly harmonious overall impression coupled with a plethora of variants that invites you to design to your heart's content.

The design finishes are available for door types E-S-1, E-S-2, E-S 63-1, Premio T30-1 and T30-2, T30-1 N2/60, Premio T90-1 and T90-2, T90-1 N9 as well as T90-1 N19. Add clever highlights – coupled with security – with Novoferm.

High gloss or matt

You have the choice: The new design finishes are available with high gloss or matt surface finish. They are varnished with a lightfast and extremely scratchproof clear topcoat that makes them suitable for use both indoors and out.

01-3004-M (H)

07-8001-M (H)

12-8023-M (H)

03-8001-H

01-9016-M (H)

08-9016-M (H)

13-9016-M (H)

03-8012-H

02-9005-M (H)

09-3004-M (H)

14-9016-M (H)

06-8001-H

04-8001-M (H)

10-8001-M (H)

15-9016-M (H)

06-8007-H

04-8007-M (H)

10-8004-M (H)

16-1037-M (H)

Customized designs are also possible – talk to us!

05-9016-M (H)

11-9016-M (H)

17-9016-M (H)

Hardware and other accessories

When it comes to security, everything needs to be perfect. Which is why each and every component that makes up a Novoferm security door is thought through to the smallest detail, combined with other components to maximize efficiency, and matched perfectly to the appropriate requirements, standards and needs.

This is clearly demonstrated by the numerous details that transform a normal steel door into an RC classified Novoferm security door. They include, for example, drill- and pull-protected security profile cylinders as per DIN 18252 BS, complete with three keys and safety card. But what also make Novoferm security doors the perfect choice are the numerous options for enhancing our security doors with further protective functions that are frequently also required in the public sector, such as fire resistance, smoke protection or soundproofing.

SI handles

Novoferm security doors already come standard equipped with high-strength aluminium security knob-lever sets with short plate and cylinder cover (RC2) or long plate (RC3). Which also makes them look good. Handle sets and stainless steel versions are also available.

Panic lock

Panic locks as per EN 1125 are mandatory in public buildings where easy escape requiring little force must be assured in panic situations. Such buildings include airports, cinemas, shopping centres, hospitals, schools or public administration buildings. At the same time, the security requirements for these buildings are stricter. All Novoferm security doors can therefore be combined with a panic lock.

Door closer

If fire resistance is a requirement alongside specific security functions, overhead door closers are mandatory – with additional door coordinator on double door units. Various models are available for Novoferm security doors (some are optional).

Spyhole

A feeling of security starts with knowing who is at the door. A door with spyhole and lockable safety chain (both optional) is reassuring.

Secure lightweight partition walls

It's not just about the door – the wall is also important. If you want to fit the door into a lightweight partition wall, for example.

What makes it so special is not just the door, but the whole kit and caboodle – Novoferm can provide you with tested RC2 doors for installation in burglar resistant gypsum partition walls. A unique solution that offers all-round security, even when using highly flexible lightweight partition walls.

Feel secure, even when using installation walls.
What is the point of a security door if you can basically just go straight through the wall?

Which is why we offer doors that reliably withstand the conditions of the relevant burglar resistance class, even in lightweight partition walls. The following RC2 door types are suitable for fast and flexible installation in F90-A burglar resistant installation walls, and come complete with hinge pin pull-out safeguard, security hardware with cylinder cover, drill-proof profile cylinder and screw locks with star-shaped covers:

NovoPorta Premio T30-1 (door and wall flap)
NovoPorta Premio T30-2
NovoPorta Premio T90-1 (door and wall flap)
NovoPorta Premio T90-2
NovoPorta Premio E-S-1 / E-S-2
E-S 6 (with 2-part wrap-around frame 2140)

And the F90A burglar resistant walls with additional steel inlay, which have been tested and approved in conjunction with Novoferm RC2 security doors:

Knauf W118
Rigips 6.70.10
Rigips 3.40.24
Rigips 3.40.21

Download technical literature (PDF)

Download technical data

NovoSecur® E-S 6

Release: July 2016
Filesize: 508 KB
Download:
PDF version

Gallery / Inspiration
