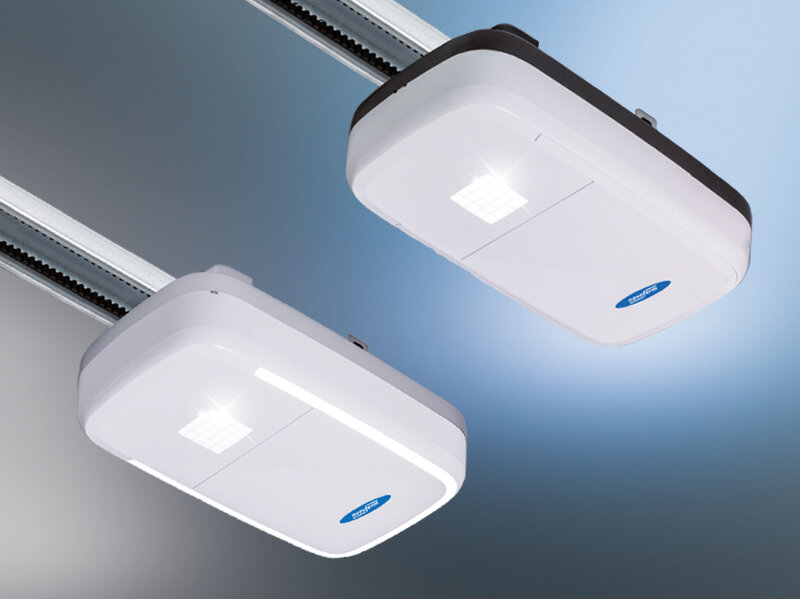

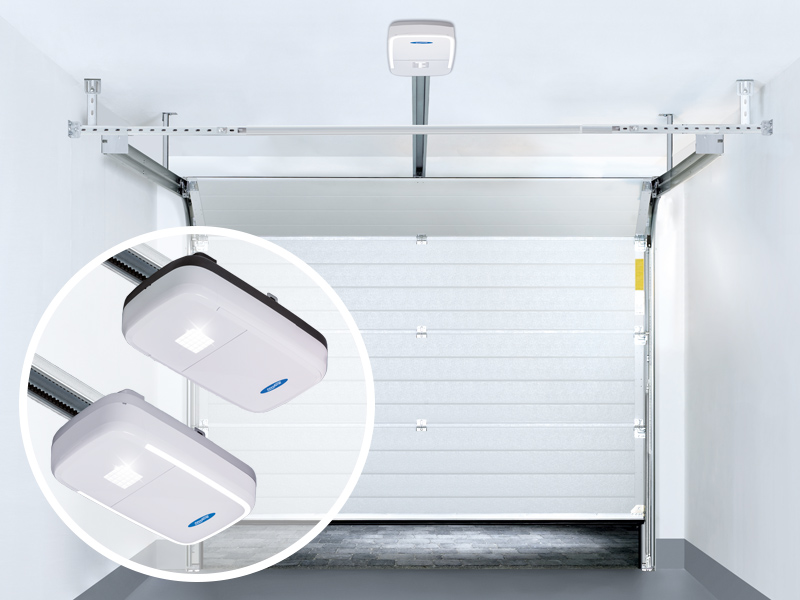

Technical data | NOVOMATIC 443 | NOVOMATIC Speed Type 573 S |
Pull and push force | 600 N | 800 N |
Mains connection | 230 V/ 50 Hz | 230 V/ 50 Hz |
Mains connection cable | with EU connection cable C7, 2-pole, 1 m long | with EU connection cable C7, 2-pole, 1 m long |
Duty cycle | 3 cycles/hour, max. 10 cycles/day | 3 cycles/hour, max. 10 cycles/day |
Operating current | 0,7 A | 1,25 A |
Temperature range | -20 ° to +40 °C | -20 ° to +40 °C |
Operating voltage motor | 24 V | 24 V |
Gearbox | Closed worm gear, self-locking | Closed worm gear, self-locking |
Power consumption Operation | 160 W | 240 W |
Power consumption stand-by | < 0,5 W | < 0,5 W |
Protection class | Only for dry rooms (IP 22) | Only for dry rooms (IP 22) |
Running speed | 18 cm/s (soft start, soft stop = 7 cm/s) | open: 22 cm/s (soft start, soft stop = 7 cm/s) close: 17 cm/s (soft start, soft stop = 7 cm/s) with ramp function |
Control system | Microprocessor-controlled in the motor head | Microprocessor-controlled in the motor head |

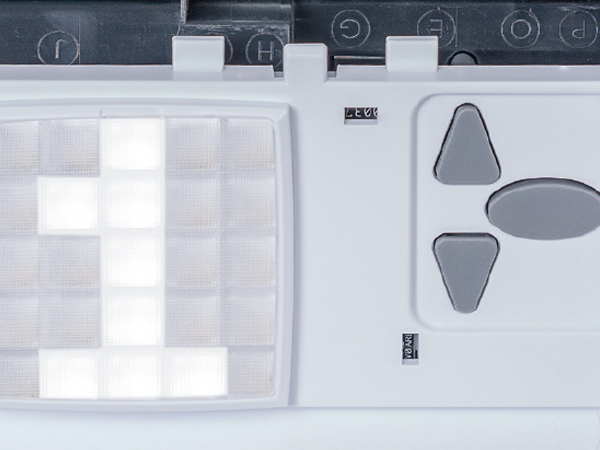

Programming | Menu-guided with 7-segment display | Menu-guided with 7-segment display |
Control sequence | 1st pulse = drive runs 2. Pulse = drive stops 3. Pulse = reverses direction of travel | 1st pulse = drive runs 2. Pulse = drive stops 3. Pulse = reverses direction of travel |

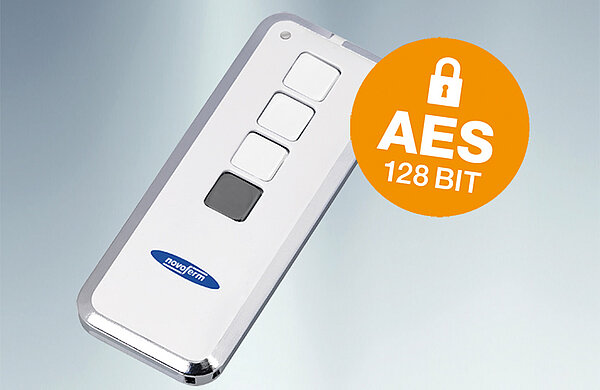

Radio control | 433 MHz, with KeeLoq changeover code | 433 MHz, with KeeLoq changeover code |
Internal push-button | Available as additional equipment | Available as additional equipment |
Quick release from the inside | as standard, can be operated from the inside with permanent release function | as standard, can be operated from the inside with permanent release function |
Emergency release from outside | Available as optional equipment | Available as optional equipment |

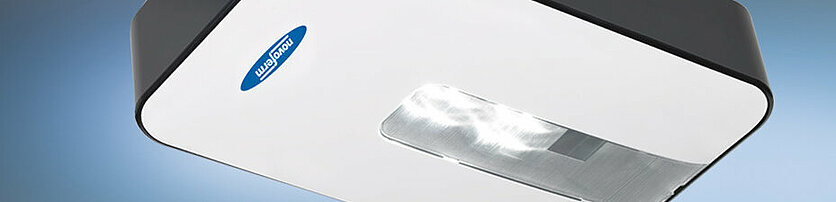

Interior garage lighting | Power LED, 1.6 W, adjustable from 60 - 240 s with/without advance warning | Power LED, 1.6 W adjustable from 60 - 240 s with/ without pre-warning |
Garage exterior lighting | External lighting max. 500 W or warning light can be connected directly | External lighting max. 500 W or warning light can be connected directly |
Ventilation setting | Programmable | Programmable |
Automatic switch-off | separately adjustable for both running directions (10-stage fine adjustment) | separately adjustable for both running directions (10-stage fine adjustment) |
Safety device | Automatic force adjustment with 2-processor safety technology, reversing in closing position, partial reversing before closing position (smooth running), stop in opening position | Automatic force adjustment with 2-processor safety technology, reversing in closing position, partial reversing before closing position (smooth running), stop in opening position |
Limit stop | Microprocessor-controlled distance detection with reference point | Microprocessor-controlled distance detection with reference point |
Running time limitation | Motor is automatically switched off after 90 s running time | Motor is automatically switched off after 90 s running time |
Stall protection | In addition to the automatic switch-off , motor standstill is recognised | In addition to the automatic switch-off , motor standstill is recognised |
Stall protection | through self-locking of the geared motor and additional mechanical locking via the upper rollers of the door (sectional doors) | through self-locking of the geared motor and additional mechanical locking via the upper rollers of the door (sectional doors) |
Running track | Galvanised steel profile with toothed belt and ball bearing mounted deflections | Galvanised steel profile with toothed belt and ball bearing mounted deflections |
CE mark | Yes | Yes |
App capability | Yes | Yes |

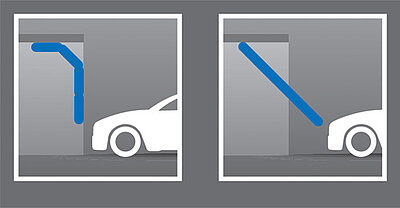

90° installation | Yes | Yes |
