All Novoferm Insulated Roller Garage Doors are

Constructed from 77mm or 55 mm double walled aluminium lathes filled with CFC free insulating foam.

Supplied complete with remote controlled powered operation and two hand transmitters.

Polyester powder coated aluminium guide channels.

Supplied with our NovoRol hard wired control Safety system.

Complete with NovoShield cover.

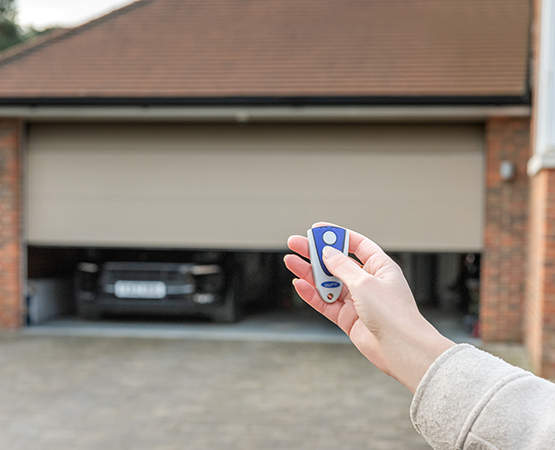

Two 2-channel hand transmitters

Insulated Roller Doors

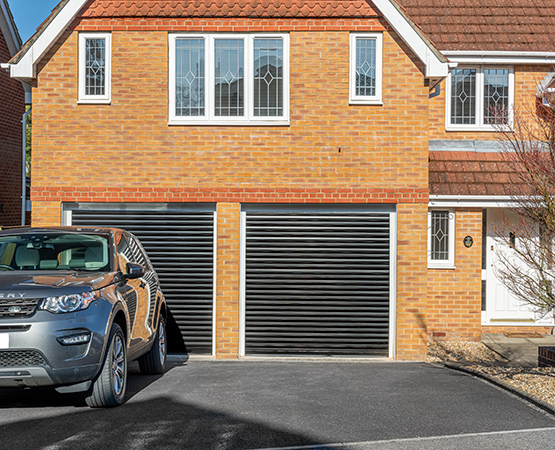

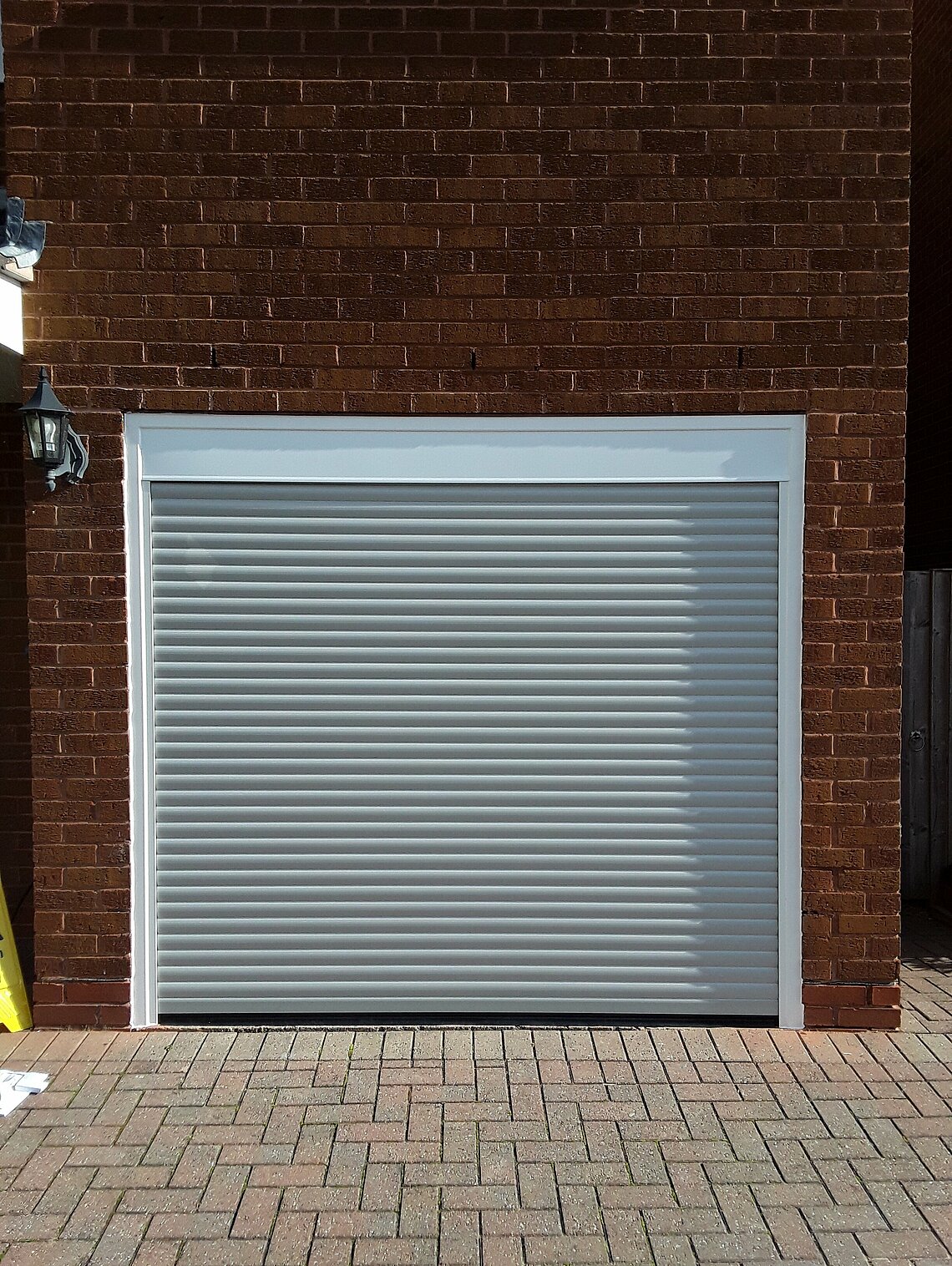

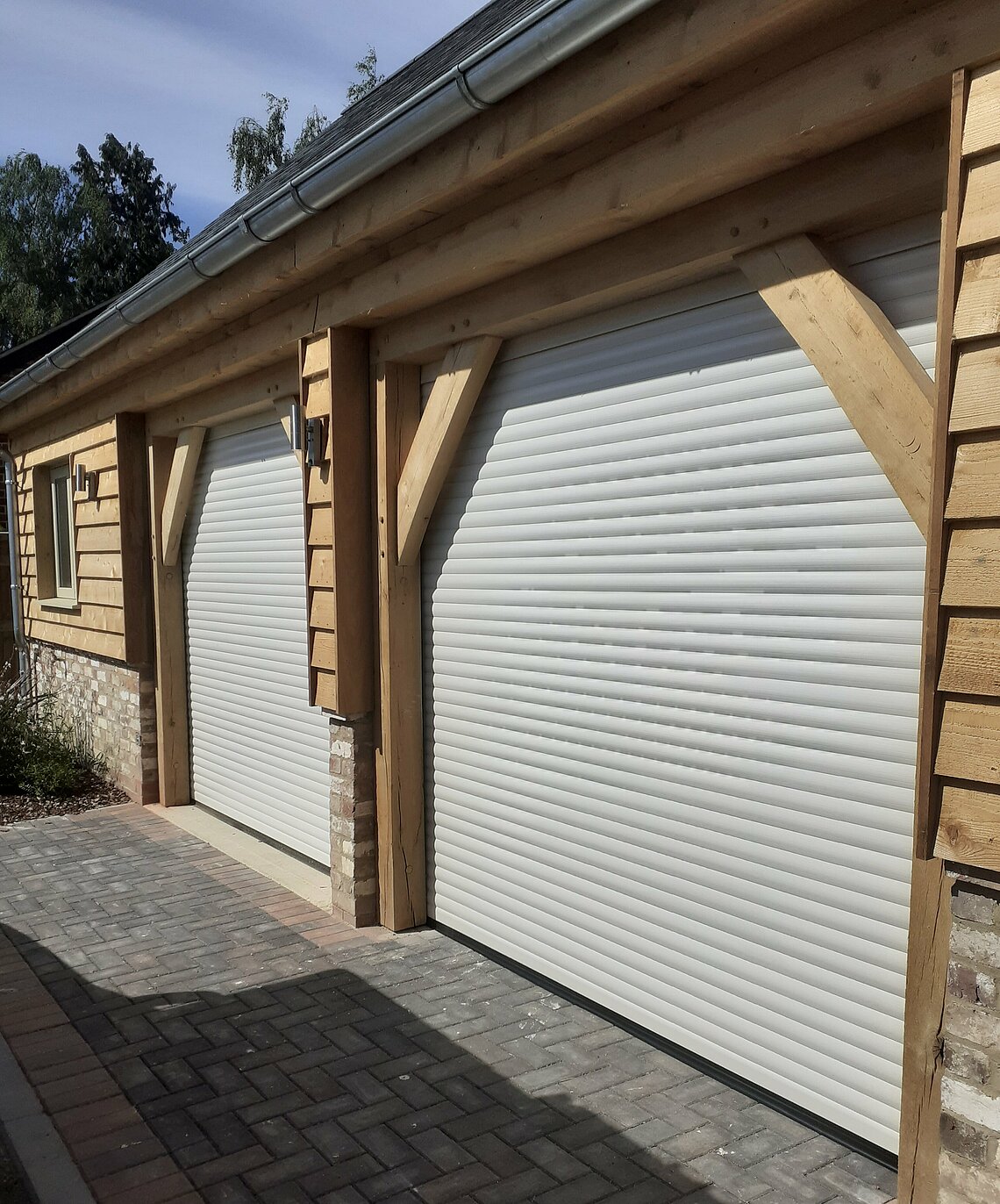

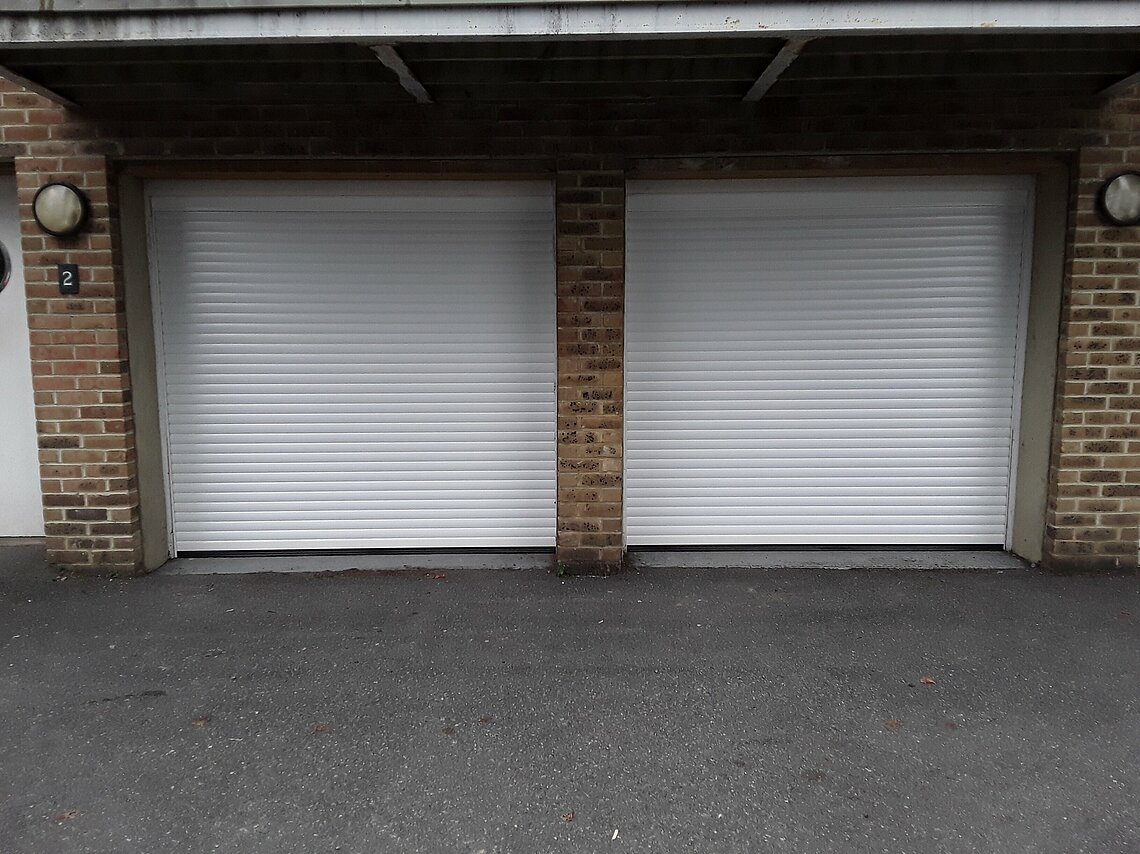

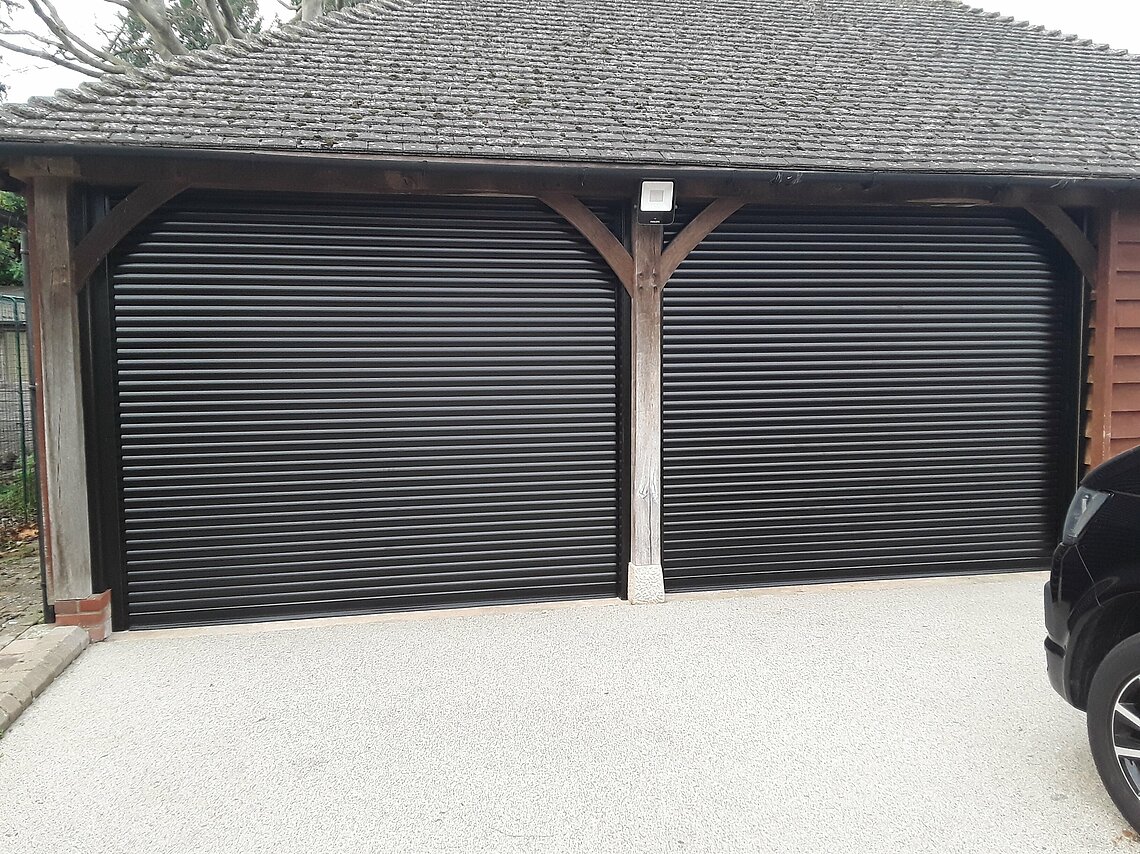

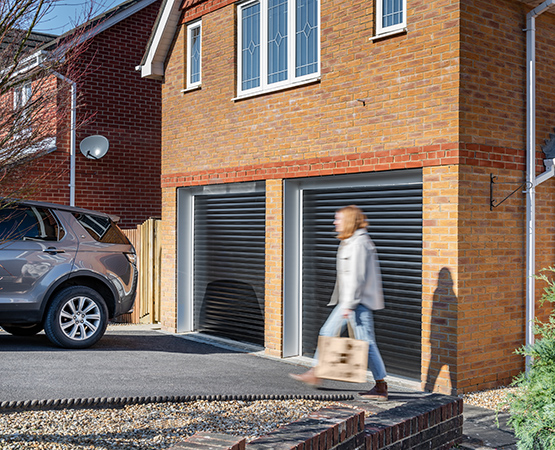

Our automated insulated Roller doors are constructed from 77mm or 55mm double walled aluminium laths filled with CFC free insulating foam , an ideal solution for those who want to improve the appearance and gain space in their garage. Known as Novorol 77 and 55 these insulated roller doors are strong and efficient.

NovoRol 77 and 55 insulated roller doors come with 70mm guides up to 3 metres (90mm thereafter). This change offers additional drive-through width on a “fit between” and is intended to provide improved flexibility, no matter what the specification might be. Clients will also be able to select the NovoShield/ Box.

Outstanding Features

white polyester powder coated shield

1. Manual Override
A connector and crank handle are supplied as standard, so your door can be opened, from inside, even during a power cut.





2. NovoShield
Supplied and finished in white as standard colour, shields the user from accidental finger entrapment and provides an attractive finish to the door curtain.

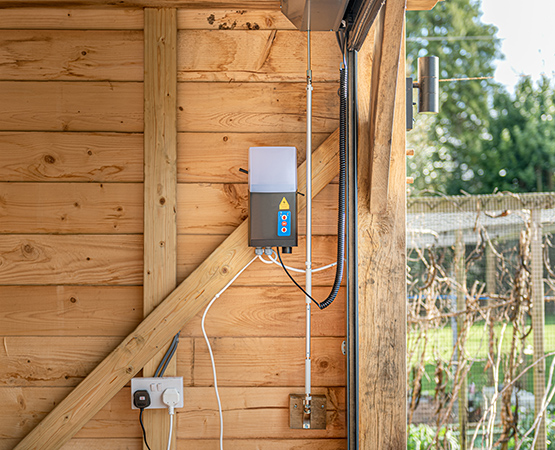

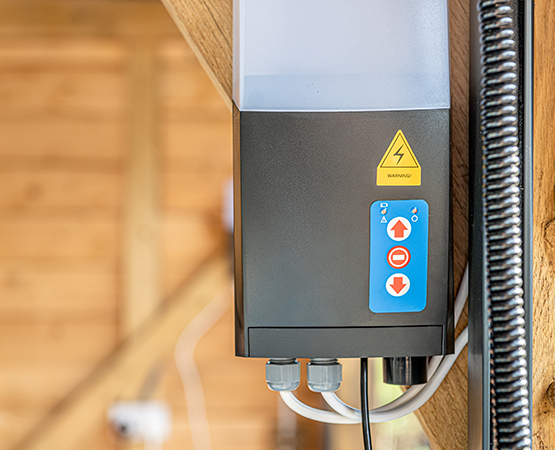

3. Control System
An interior light is provided within the self contained control box.





4. Guide Rails
Guide rails made from aluminium profile with a white polyester powder coated finish.





5. Safety Edge
Supplied as standard. At the bottom edge of your door is an emergency sensor which will stop and reverse when the door is in operation, if it senses an obstruction.

Secured by Design

Insulated Roller Garage Door

Novorol 77 - Secured By Design (SBD)

Novoferm UK are pleased to announce our Novorol 77 Insulated Roller door (Up to 3m) is Secured by Design (SBD) accredited, (STS222 tested – Passed to BR1). Our Novorol 77 SBD Roller Garage Door has been independently tested to ensure it can withstand realistic intrusion attempts, giving both you and your customers confidence in its performance.

Secured by Design (SBD) is the official UK Police security initiative that promotes building products proven to reduce crime. With garage doors often targeted by burglars due to the valuable assets they protect and the potential direct access they provide to the home security is more important than ever. SBD focuses on the improvement of products that include doors, windows, locks and walling systems. Products that receive the ‘Secured by Design’ accreditation are certified as providing the highest levels of security.

For more information on Secured By Design, you can visit their website - https://www.securedbydesign.com/
 *Only available on Novorol 77 up to 3m. Excludes vision lath option. Behind Fit Installation only.

Important Safety Tip

Insulated Roller Garage Door

Always buy a garage door that complies fully with EN12453 – Safety in use of power operated garage doors …and avoid finger entrapment!



Novoferm Insulated Roller Garage Doors comply with EN12453 – Safety in use of power operated garage doors, by means of the NovoShield box cover which covers the operating mechanism of the door curtain.

Convenient, Safe and Secure

roller door for garage

Safety

Certified to the high safety requirements and performance characteristics of European Standard EN 13241-1, all Novoferm Insulated Roller Garage Doors are available to be fitted with a full NovoShield cover for the door curtain, this is an optional extra.

In the event of an obstacle impeding the door entrance the Safety Edge will stop and return the door to the open position.



Convenience

An ideal solution for people who want to gain extra space in their garage, requiring only 300mm x 300mm of head room space. Opening vertically so you can park your car up close to the garage door and push button automation makes it so easy to open and close your garage door.



Insulated

The insulated aluminium profiles provide a thermal and acoustic barrier, which could reduce your energy bills, reduce your carbon footprint and provide noise reduction.



Security

Manufactured with built in autolocks. When the door is closed a spring clamp device holds the door down tight.



Novoshield

Supplied and finished in white as standard colour, shields the user from accidental finger entrapment and provides an attractive finish to the door curtain.
