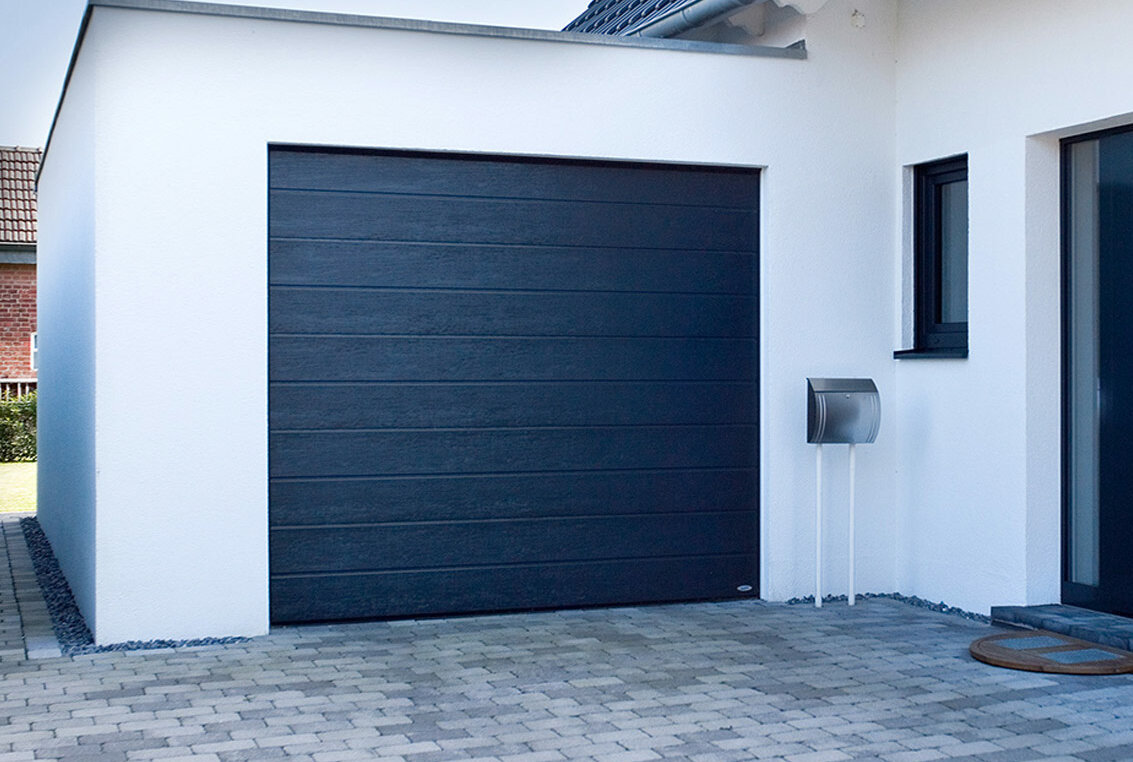

ISO20 Sectional Doors (Steel Sectional Garage Doors)

If you are searching for doors that come in a wide assortment of patterns and colours, look no further than the ISO20 sectional doors – brought to you by Novoferm. Not only are these doors energy-efficient and designed to be durable and easy-to-use, but they are affordably priced too.

THE ADVANTAGES SUMMARISED

Suitable for Private Garages Measuring Up To 3000mm in Width
Carries a Warranty of Up To Ten Years (Made in Germany)
High-Quality – Smooth, Stable Operation
Double-Skinned Galvanised Steel Sections
STS 202 BRI Burglar Resistance (excluding optional extras)
Anti-Pinch Protection (Inside and Outside) – keeps fingers safe
Available in Two Surface Finishes, 11 Top-Coated Options, and an Array of Affordable Colours
Also Available in Traffic White

OUTSTANDING THERMAL AND ACOUSTIC INSULATING PERFORMANCE

When it comes to thermal and acoustic insulating performance, our Novoferm ISO20 sectional doors are market-leading performers. The secret lies in the construction of the doors, which is a method that is exclusive to Novoferm. We’ve adopted a double-skinned sandwich approach to how we fabricate these doors. This construction allows for the insertion of a 20mm insulating rigid PUR foam core (heat insulation value K = 1.0 W/m²K).

The result is improved heat insulation, acoustic dampening, and quieter door operation when compared to single-skinned variants. At low temperatures, it’s possible for the sections of a door to not fit as closely as they should, especially if sub-standard seals are used. This can allow warm air to bleed out, lowering the temperature of the room. Our doors are equipped with flexible lip seals to prevent heat from escaping, and to keep out dust.

Wide range of models and equipment

Garage door patterns for single garages

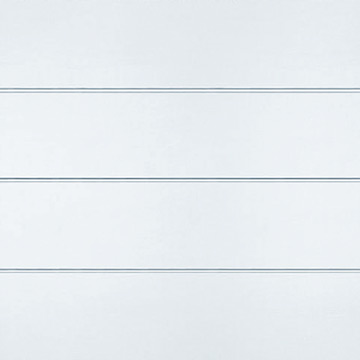

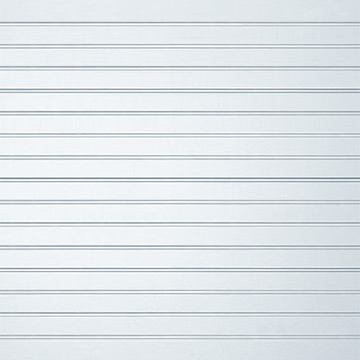

Horizontal rib

Illustration features door size
2500 x 2125 mm Other garage door sizes can deviate from the illustration shown.

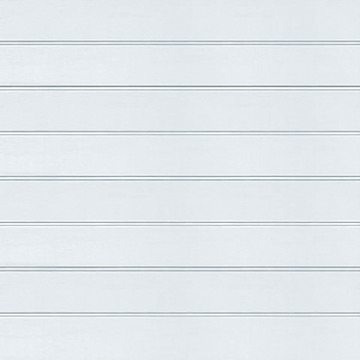

Large rib

Microline Patterns

Available in satin white and satin grey, our Microline (flush) pattern finishes are a popular choice. Perfect for our ISO45 sectional doors, this exclusive option provides a profiled wave texture that looks modern and offers a striking light and shade effect.

Flush

Door leaf

Inside door leaf:	Polyester-based prime coat, grey white, similar to RAL 9002
Outside door leaf (standard):	Traffic white, similar to RAL 9016 (prime coated)
Outside door leaf:	Super Color or RAL of your choice at additional cost (top coated)

GARAGE DOORS TAILORED TO SUIT YOUR PROPERTY

… in two surface finishes with numerous preferred colours

Surface finishes

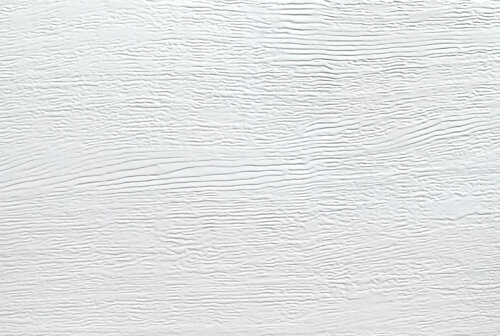

Woodgrain
(horizontal rib and large rib only)

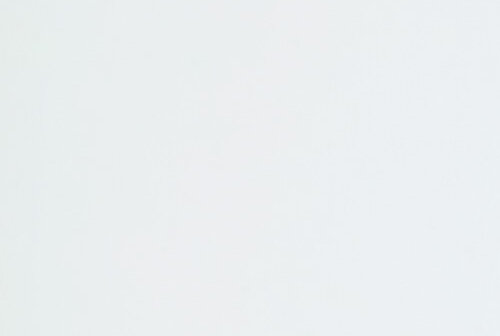

Noblesse (smooth)
(depending on pattern)

Colours

Traffic white,
similar to RAL 9016

Super Colors / preferred colours

Black,
similar to RAL 9005

White aluminium color finish for garage door

White aluminium,
similar to RAL 9006

Steel blue,
similar to RAL 5011

Grey aluminium color finish for garage door

Grey aluminium,
similar to RAL 9007

Moss green,
similar to RAL 6005

Anthracite grey color finish for garage door

Anthracite grey,
similar to RAL 7016

Fir green,
similar to RAL 6009

Ochre brown color finish for garage door

Ochre brown,
similar to RAL 8001

Light grey,
similar to RAL 7035

Nut brown,
similar to RAL 8011

Window grey color finish for garage door

Window grey,
similar to RAL 7040

Sepia brown color finish for garage door

Sepia brown,
similar to RAL 8014

... With Numerous Glazing Options

CLASSIC AND MODERN OPTIONS AVAILABLE

Why not really stamp your mark on your new set of ISO20 sectional doors? With outstanding glazing options available, you can elevate the look and feel of your doors to the next level. Glazing is necessary to let in light, which leaves the interior space feeling brighter and more spacious. Not only that, but glazing also adds to the aesthetics too. At Novoferm, we supply weather-resistant acrylic glass glazing panels as well as ones which are made from impact-resistant polycarbonate.

Window

Plain clear / frosted

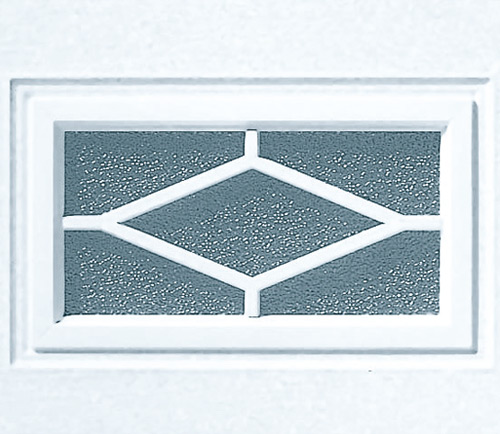

Diamond clear / frosted

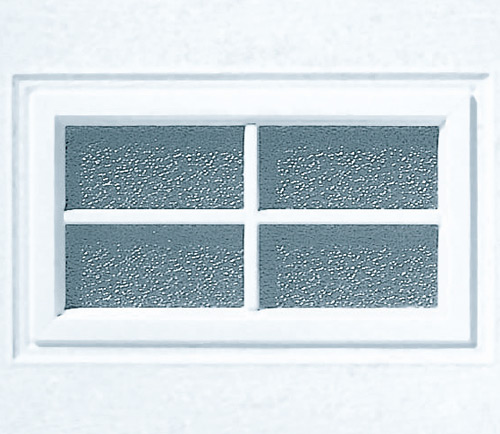

Square clear / frosted

Dimensions:
inside: approx. 392 x 192 mm
outside: approx. 460 x 260 mm

Window thickness:

Large rib pattern: 16 mm acrylic double glazing, transparent or crystal

... LIGHTING KIT

THE LED LIGHTING KIT

Just because it’s dark outside, doesn’t mean you can’t show off your ISO20 sectional doors. With our LED lighting kit, the best features of your doors will be accentuated. Our kits consist of four, six, or eight LEDs evenly distributed across a U-shaped rail. The LEDs used offer a large amount of illumination while remaining energy-efficient. Once fitted, they’ll create an even distribution of light across the entire door.

What makes the LED lighting kit a worthwhile investment is its ability to act as a deterrent to intruders. It can either be remotely activated, controlled with the operator, with a separate time or motion activated. The latter, in particular, is useful as it’ll be triggered by anyone who approaches your property. The kit itself is flat by design, so when fitted underneath the header, nearly all passage height will be maintained.

THE ADVANTAGES OF LED LIGHTING SUMMARISED

- Weather-Resistant Lighting
- Space-Saving Design
- Even Distribution – Suitable for Garages Up to 3000, 4000, or 5000mm in Width (depending on whether four, six, or eight LEDs are chosen)
- Two-Channel Remote Control
- Multiple Operating Modes
- Bright Illumination/ Low Power Consumption
- Long Service Life (incl. mains transformer 230V/ 12V

… plastic handles

Plastic handles

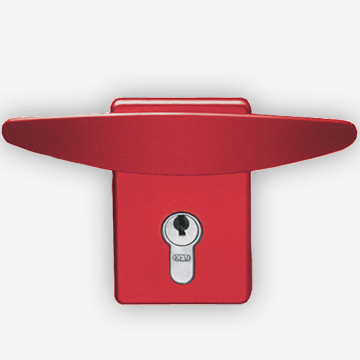

Handle
Coated,
in Super Color or RAL colour

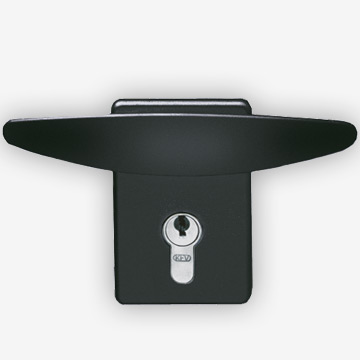

Handle
Coated,
black (optional)

For further handles, see iso 45.

… garage door operators and accessories

Videos

VERTICAL SPEED SPRING

The beauty of our ISO20 sectional doors is that they come equipped with multiple safety tension spring assemblies. Located at the upper end of the assemblies are parts which can be adjusted to modify the springs, if necessary. With the vertical tension springs, one lower installation depth can be achieved, creating new possibilities for situations where space is limited.

EVERYTHING YOU NEED TO KNOW ABOUT THE VERTICAL TENSION SPRING

When purchasing an ISO20 sectional garage door from Novoferm, you’ll quickly discover that all our doors come with a vertical tension spring fitted as standard.

1. Interference-Protected Deflection Pulley
Interference-protected deflection pulleys are used to feed steel cables vertically into the angular frame. These pulleys are mounted on ball bearings equipped with U-shaped roller holders. The purpose of this setup is to lower the height requirement typically associated with a front-mounted torsion spring.

2. New Cable Mount
On every ISO20 sectional door, you’ll find a newly designed cable mount. Combined with the new steel cable holder, the mount is intended to keep the steel cables running smoothly within the angular frame, and away from the various sections. An integrated door guide helps facilitate this function.

3. Integrated Belt Fastening
For improved performance, we’ve added a newly designed moulded end piece to the construction of the ISO20 sectional door. Within this moulded piece is an integrated fastener for the NovoPort® belt. This belt, which requires zero maintenance, is kept fastened securely in the holder.

4. Multiple Tension Spring Assemblies
Each ISO20 section door sports multiple tension spring assemblies. These springs are easily adjusted at the top of the assembly and require far less installation depth. This particular detail is great news as it opens up a whole world of possibilities in situations where space is limited.

5. NovoPort® - Unique and Flexible Design
Novoferm ISO20 sectional doors come with the NovoPort® operator system which has been cleverly designed for maximum convenience both during installation and operation. The motor itself is integrated into the side garage door track rather than the ceiling like most other operators. No ceiling assembly is required, therefore, reinforcing the idea that this system is the convenient choice.

6. Anti-Pinch System
There’s nothing worse than pinching occurring on the door leaf. Fortunately, the design of the sections and hinges that comprise the ISO20 sectional doors helps prevent this.

7. Interference Protection and Cables Channelled Down the Inside
With the way the angular frames are designed, it is virtually impossible to reach between the door leaf and the frame. To reduce the risk of injury and ensure maximum operational reliability, suspension cables are arranged inside.

THE ADVANTAGES SUMMARISED

Easy to install

Low Installation Height

Shorter Horizontal Tracks Which Require Less Space

NovoPort® - Easy and Quick to Install

Lower Standard Head Room Requirements

Added to that, the vertical tension spring system on iso 45 sectional garage door is more cost effective then the torsion spring version

Sectional garage doors with 20 mm insulation made by Novoferm are standard supplied with a vertical tension spring system.

1. Interference-protected deflection pulley
The steel cables run vertically into the angular frame on interference-protected deflection pulleys mounted on ball bearings with U-shaped roller holders. This reduces the height requirement compared to a front-mounted torsion spring.

2. New cable mount
Together with the new steel cable holder, the newly designed cable mount with integrated door guide keeps the steel cables running smoothly in the angular frame without them touching the sections.

3. Integrated belt fastening
The newly designed moulded end piece contains an integrated fastener for the NovoPort® belt. The maintenance-free belt is fastened securely in the holder.

4. Multiple tension spring assemblies
The tension spring garage doors are equipped with sturdy multiple tension spring assemblies. The springs are adjusted at the top end of the assembly. The vertical tension springs require less installation depth and open up new possibilities when space is confined.

5. NovoPort® - unique & flexible
The NovoPort® operator system not only offers maximum convenience during operation, but also during installation. After all, the motor is not fixed to the ceiling like conventional operators, but simply integrated into the side garage door track – either on the left or the right depending on the structural conditions. Therefore no ceiling assembly is required.

6. Anti-pinch inside and out
The special design of the sections and hinges prevents pinching on the door leaf from the outset. Pinching is not a risk on the inside of Novoferm doors either.

7. Interference protection and cables channelled down the inside
The angular frames make it almost impossible to reach between the door leaf and the frame. Suspension cables arranged inside minimize the risk of injury and guarantee maximum operational reliability.

The advantages at a glance

Easy to install; low installation height
The spring is easy to adjust
The horizontal tracks are shorter (require less space)
NovoPort® is easy and fast to install
Lower standard headroom requirement
Added to which, the vertical tension spring system on iso 45 sectional garage doors is cheaper than the torsion spring version
