Hydraulic loading ramps

Hydraulic loading ramps with telescopic lip

Pinpoint loading accuracy thanks to the infinitely adjustable telescopic lip on a NovoDock L 500i. The loading ramps are easy and safe to operate with the integrated i-Vision TA controller. Like all Green Solution products, NovoDock L 500i and L 550i save costs – thanks to CO₂ reduction.

Product benefits

Standard GreenPlus package saves up to 70% energy, optional bio-petroleum at no extra cost
Components comply with RoHS
Paint complies with VOC

NovoDock L 500i

Your advantages at a glance

Standard ErgoPlus package
High level of health protection for employees and careful handling of consignments thanks to the infinitely height adjustable telescopic lip
Lower costs for handling equipment

NovoDock L 550i

Your advantages at a glance

Higher dynamic load bearing capacity of 100 kN makes it especially suited for heavier consignments

NovoDock L 500i and L 550i: the details

Controllers and operators

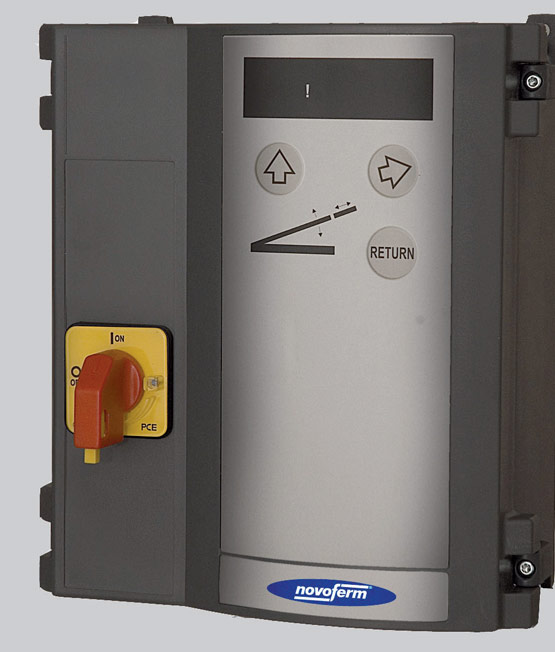

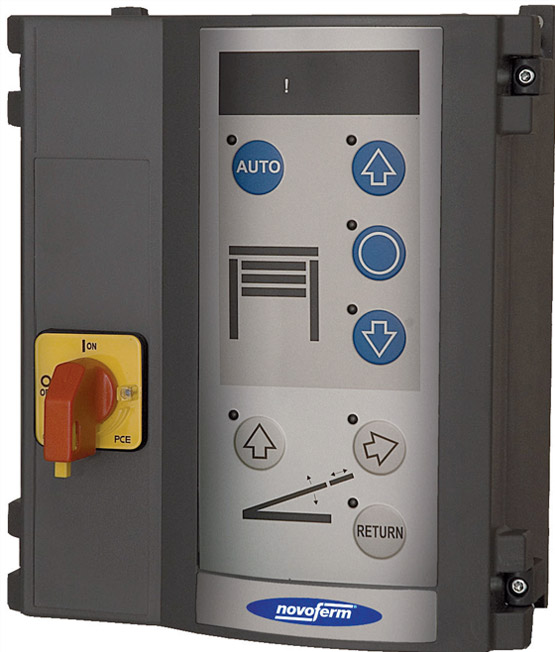

i-Vision TA

i-Vision TAD (optional)

NovoDock L 500i and L 550i loading ramps are operated by i-Vision TA controller, which is included.

Technical data

Properties	L 500i	L 550i
Rated load as per EN 1398	60 kN	100 kN
Lip lengths (mm)	500/1000	500
Nominal lengths (mm)	2000, 2500, 3000, 3500, 4000, 4500	2000, 2500, 3000, 3500, 4000, 4500
Nominal widths (mm)	2000, 2250, 2400	2000, 2250, 2400

Installation heights (mm)
600	max. 3000 (NL)	–
700	max. 2500 (NL)	max. 2500 (NL)
800	at 3000 (NL)	at 3000 (NL)
900	from 3500 (NL)	from 3500 (NL)

The max. permissible slope as per EN 1398 is 12.5%.

Standard colours for loading ramps

RAL colours
RAL 5010
RAL 7016
RAL 9005

Hydraulic loading ramps with hinged lip

In loading technology, NovoDock L 300i and L 350i with hinged lip have become the standard basic model. The loading ramps are easy and safe to operate with the integrated i-Vision HA controller. Like all Green Solution products, NovoDock L 300i and L 350i optimize energy consumption to reduce CO₂ and save operating costs.

Product benefits

Standard GreenPlus package, save up to 70% energy, upon request bio-petroleum at no extra charge
Components comply with RoHS
Paint complies with VOC

NovoDock L 300i

Your advantages at a glance

Conventional loading product combined with state of the art control technology

NovoDock L 300i and L 350i: the details

Controllers and operators

i-Vision TA

i-Vision TAD (optional)

NovoDock L 300i and L 350i loading ramps are operated by i-Vision TA controller, which is included.

Technische Daten

Properties	L 300i	L 350i
Rated load as per EN 1398	60 kN	100 kN
Hinge lip lengths (mm)	400	400
Nominal lengths (mm)	2000, 2500, 3000, 3500, 4000, 4500	2000, 2500, 3000, 3500, 4000, 4500
Nominal widths (mm)	1750, 2000, 2250	1750, 2000, 2250

Installation heights (mm)
600	max. 3000 (NL)	max. 3000 (NL)
700	max. 3000 (NL)	max. 3000 (NL)
800	at 3500 (NL)	at 3500 (NL)
900	from 4000 (NL)	from 4000 (NL)

The max. permissible slope as per EN 1398 is 12.5%.

Standard colours for loading ramps

RAL colours
RAL 5010
RAL 7016
RAL 9005

Hydraulic loading ramps in steel frames

Thanks to their steel frame, NovoDock P 1500i and P 1300i can also be installed in front of a building to serve as the basis for a loading bay. The loading ramps are easy and safe to operate with the integrated i-Vision controller. Like all Green Solution products, NovoDock P 1500i and P 1300i save costs – thanks to CO₂ reduction.

Product benefits

Standard GreenPlus package, save up to 70% energy, upon request bio-petroleum at no extra charge
Components comply with RoHS
Paint complies with VOC

NovoDock P 1500i

Your advantages at a glance

Standard ErgoPlus package
High level of health protection for employees and careful handling of consignments thanks to the infinitely height adjustable telescopic lip
Lower costs for handling equipment

NovoDock P 1300i

Your advantages at a glance

Affordable solution, combined with the very latest control technology

NovoDock P 1500i and P 1300i: the details

Angled design:
90°, 75°, 60°,45°, 105°, 120°, 135°

Controllers and operators

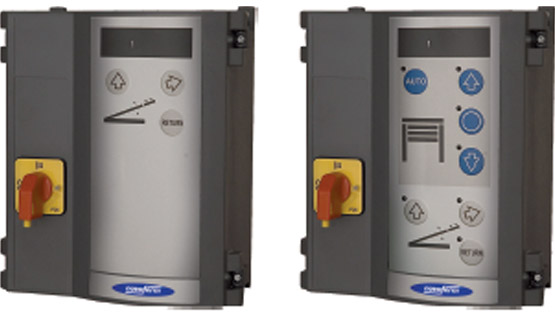

NovoDock P 1500i
i-Vision TA / TAD (optional)

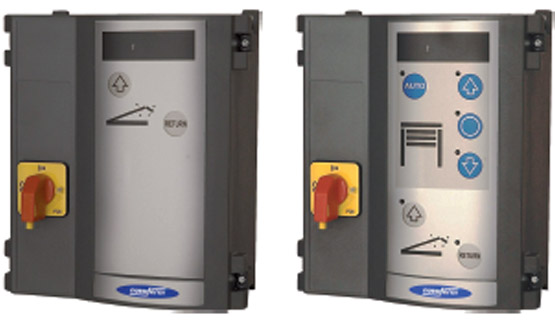

NovoDock P 1300i
i-Vision HA / HAD (optional)

Controllers and operators

NovoDock P 1500i
i-Vision TA / TAD (optional)

NovoDock P 1300i
i-Vision HA / HAD (optional)

Technical data

Properties	P 1500i	P 1300i
Rated load as per EN 1398	60 kN	60 kN
Lip lengths (mm)	500/1000	400
Nominal lengths (mm)	2000, 2500 (2440), 3000, 3500, 4000, 4500	2000, 2500 (2440), 3000, 3500, 4000, 4500
Nominal widths (mm)	2000, 2250	1750, 2000, 2250
Platform widths (mm)	3300, 3500	3300, 3500

Installation heights (mm)
700	max. 2500 (NL)	max. 3000 (NL)
800	at 3000 (NL)	at 3500 (NL)
900	from 3500 (NL)	from 4000 (NL)
