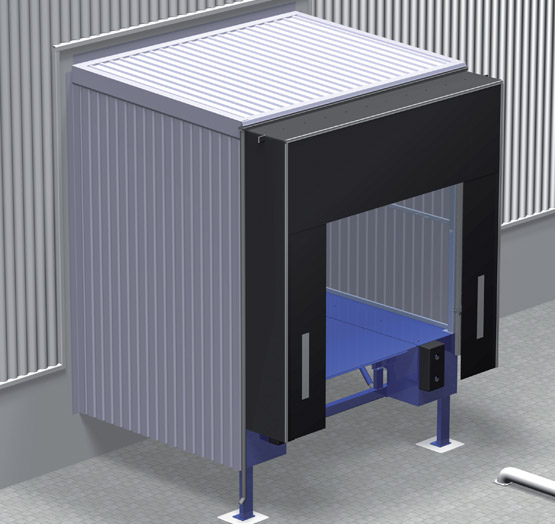

NovoDock H 1300 and H 1500 loading solutions

Flexible loading solution for your logistics

NovoDock H 1500 and H 1300 offer a variable design suited for the use of loading ramps with a telescopic or hinged lip. In confined spaces, the design of the loading bay can be sequential or angled, providing additional storage space inside the building.

Product benefits

Loading bay can be retrofitted
Reduced energy requirements in temperature-controlled warehouses
Easy to install, even without interrupting operations
Flexible housing designs

NovoDock H 1300

Side panel down to lower edge of loading ramp (optional)

Your advantages at a glance

Affordable solution, combined with the very latest control technology

Technical data

Properties	H 1300
Nominal lengths (mm)	2000, 2500, 3000, 3500, 4000, 4500
Nominal widths (mm)	3300, 3500
Ramp heights (mm)	950 – 1500

NovoDock H 1500

Side panel down to lower edge of loading ramp (optional)

Your advantages at a glance

Standard ErgoPlus package
High level of health protection for employees and careful handling of consignments thanks to the infinitely adjustable telescopic lift with height adjustment
Lower costs for handling equipment

Technical data

Properties	H 1500
Nominal lengths (mm)	2000, 2500, 3000, 3500, 4000, 4500
Nominal widths (mm)	3300, 3500
Ramp heights (mm)	950 – 1500

Loading bay structures

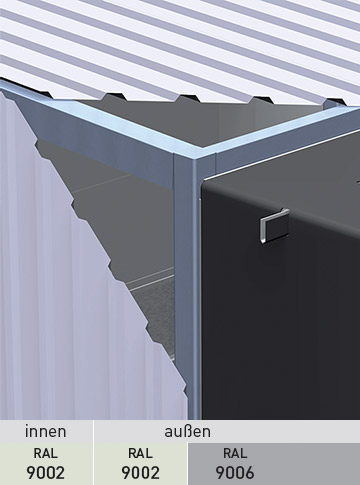

Standard type:
Clad with trapezoidal sheet metal up to the top edge of the steel platform, base coated in RAL colours:
Inside: RAL 9002
Outside: RAL 9002, RAL 9006

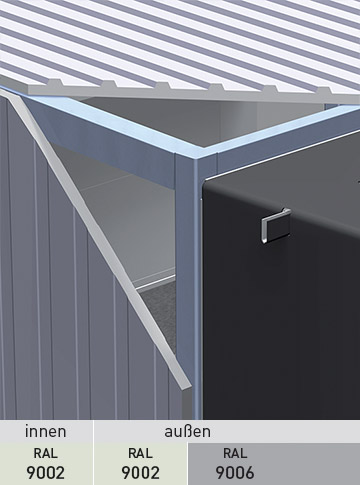

ISO type:
Clad with 40 mm insulating panel up to the top edge of the steel platform,
base coated in RAL colours:
Inside: RAL 9002
Outside: RAL 9002, RAL 9006
